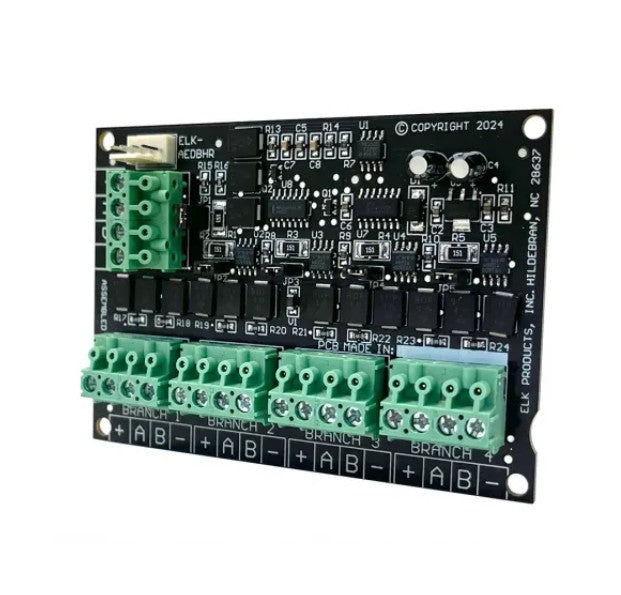

Elk Products Inc. ELKAEDBHR | Retrofit Data Bus Hub for Alarm Engine
Description
Description
The ELK-AEDBHR splits the Elk Alarm Engine RS-485 data bus output into 4 managed branches for retrofit installs where an older existing panel being replaced by an Alarm Engine Control has multiple homerun 4 conductor keypad/data wires available. Each branch of the “active” RS-485 data bus can have 2 additional parallel home run cables for a total of 8 available home runs—expanding the available hardware options for antiquated systems—additionally, terminating jumpers at the end of each branch ensure proper operation and supervision of end-of-line devices with minimal electrical interference or risk of equipment damage.
Elk Products Inc. - ELKAEDBHR - Features
- Splits Alarm Engine RS-485 data bus output into 4 managed branches and up to 8 home run cables (2 per branch)
- Works with standard 4 conductor home run wire
- Mounts inside the Alarm Engine enclosure using provided ELK-SWG circuit board glides
Specifications
Specifications
Elk Products Inc. - ELKAEDBHR - Specifications
| Min. wire gauge: | 24AWG |
|---|---|
| ong-distance wire gauge: | 18 – 22AWG |
| Circuit Board Dimensions: | 4’’ x 2.75’’ |
| UPC | 762158570162 |
