ELK Products Inc M1KP2 | Low Profile LCD Keypad for M1 Controls
Description
Description

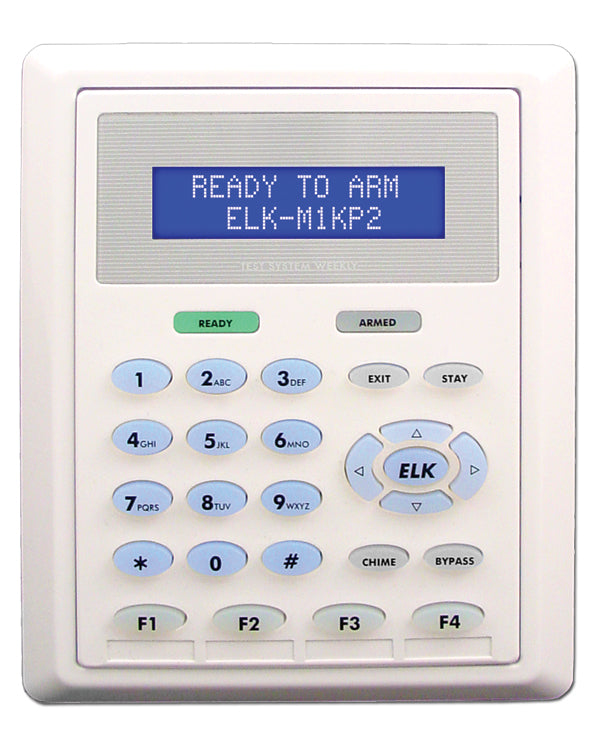

The ELK-M1KP2 is a low profile, addressable LCD Keypad for the M1 family of Cross Platform Controls®. It features a 32 character blue/white backlighted display, blue lighted keys, 4 programmable function keys, along with the ELK menu navigation keys. It may also be recess ‘flush’ mounted using with a separately purchased back box kit (ELK-M1BBK2). The M1KP2 is compatible with “external” 26 bit Wiegand compatible proximity readers, allowing cards or fobs to be used for arming, disarming, or limited door strike control, etc.
ELK Products Inc - M1KP2 - Features
- Blue/white Backlighted Hi-Contrast LCD Display
- Four (4) Programmable Function Keys
- Unique Menu Navigation/Direction Keys
- Operates from the M1/EZ8 RS-485 Data Bus
- Built-in Piezo Sounder with adjustable pitch
- Accepts "External" 26 bit Wiegand Prox Reader (Optional)
Specifications
Specifications
ELK Products Inc - M1KP2 - Specifications
| Connection | 6 Pin Plug-in "Flying Lead" Connector (Included) |
|---|---|
| Operating Voltage | 13.8 VDC |
| Current Draw | ~30 mA Idle (low back light level, sounder silent) |
| Size | 4.658" W x 5.5" H x .95" D (.375" D with recess mount) |
