ELK Products Inc M1TWA | Amplified Two Way Listen In Interface
Description
Description

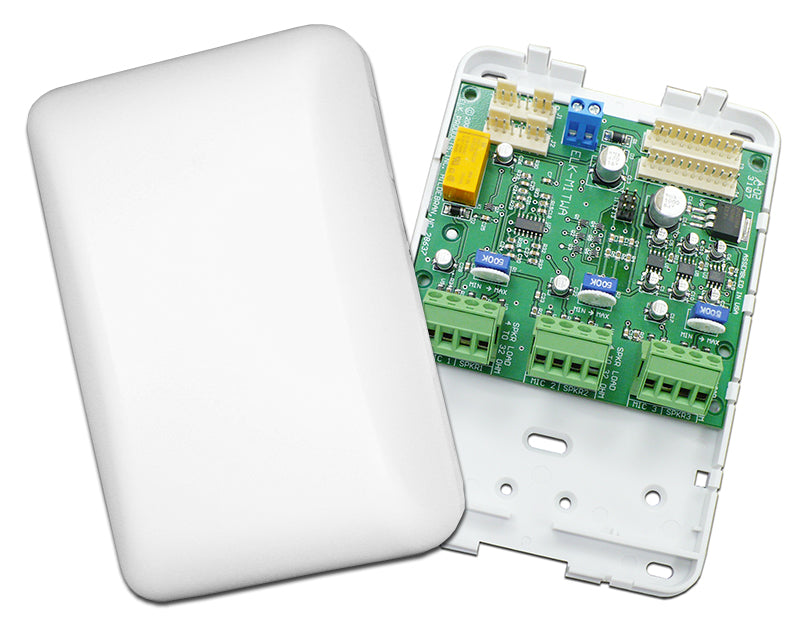

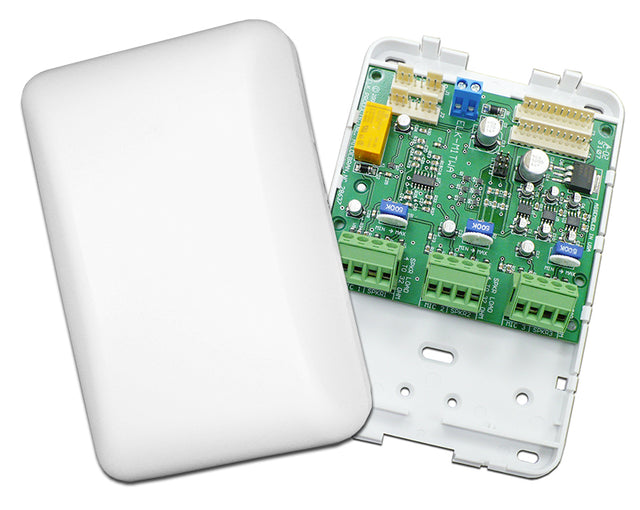

Provides 3 zones of amplified speaker outputs with adjustable volume, along with 3 zones of microphone inputs. The M1TWA can be used to add two way listen-in to the M1 Control or to just add amplified speakers at keypads and other locations in a building. Each of the 3 amplified speaker zones can drive a maximum combined impedance range of ~4 to 32 Ohms, permitting multiple speakers to be connected. Each zone includes a mute option that is triggered via an output from the control. The 3 microphone zones can handle up to 4 individual microphones each.
ELK Products Inc - M1TWA - Features
- 3 Amplified Speaker Zones
- Adjustable Speaker Volume Control by Zone
- Selectable Mute by Zone
- 3 Microphone Input Zones (up to 4 mics per zone)
- Selectable Mic Listen by Zone or Select ALL
- Interfaces to ELK-M1Gold Controls
Specifications
Specifications
ELK Products Inc - M1TWA - Specifications
| Output Impedance Range | ~4 to 32 Ohms per SPKR Output Multiple speakers on any single output must be parallel or serial connected to maintain rated impedance |
|---|---|
| Amplifier Rating | 1/2 Watt per Speaker Output |
| Operating Voltage | 9 to 14 Volts D.C. |
| Current Draw | 15mA nominal, 1000mA (1 Amp) maximum |
| Housing Dimensions | 4.25" x 6.375" x 2.125" |
| Circuit Board Dimensions | 2.25" x 3.95" |
