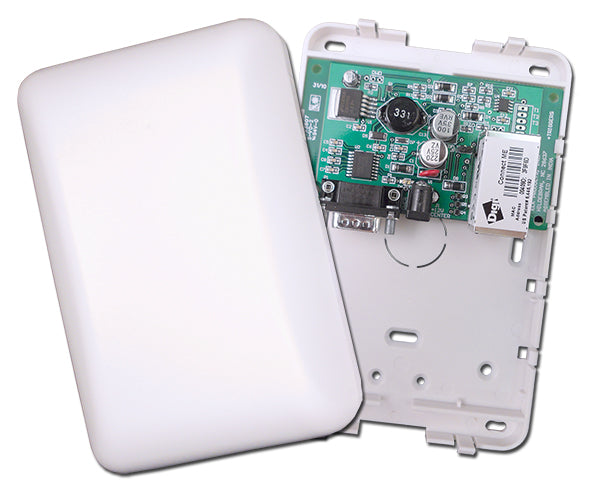

ELK Products Inc M1XEP | M1 Ethernet Interface
Description
Description
The ELK-M1XEP is an Ethernet Appliance with a RS-232 Serial Port Interface. It may be used to connect a control in the M1 Family to an Ethernet network. It features email event notification and FIPS compliant encryption algorithms for security sensitive environments. It is powered by an ELK-P1216 12 Volts DC, 1.5 Amp plug-in power supply/adapter. A software setup utility is built into ElkRP for configuring the connection setup, network password, etc. The M1 Ethernet Interface is factory defaulted to obtain a dynamic IP address from a DHCP server (i.e. router, cable modem, etc.). It may optionally be setup with a static IP address.
ELK Products Inc - M1XEP - Features
- Secure connection with password protection and SSL/TLS encryption
- Flash Memory for Firmware Updating
- Event notification via E-Mail (SMTP)
- Supports automatic Dynamic DNS Updates with providers using the DynDNS protocol.
- Supports Network Time Protocol for synchronizing the M1/EZ8's clock with an Internet time server.
- Internet Monitoring and Reporting Capability
Specifications
Specifications
ELK Products Inc - M1XEP - Specifications
| Operating Voltage | 12 Volts D.C |
|---|---|
| Current Draw | approx. 300 mA |
| Housing Dimensions | 4.25" x 6.375" x 2.125" |
| Circuit Board Dimensions | 2.25" x 3.95" |
