ELK Products Inc M1XRFTWM | M1 Two-Way Wireless Transceiver
Description
Description

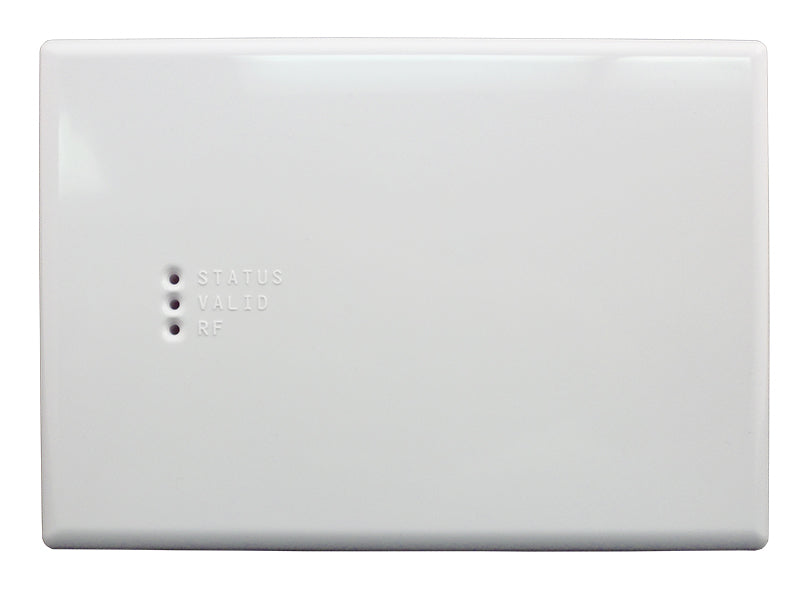

The M1XRFTWM two-way wireless transceivers allow an ELK-M1 or ELK-M1EZ8 control to accept Elk’s complete line of two-way wireless sensors. The ELK-M1XRFTWM has been optimized to provide superior signal reception and reliability in multi-transceiver applications.The ELK-M1XRFTW has been replaced by the ELK-M1XRFTWM. The ELK-M1XRFTWM performs all the functions of the ELK-M1XRFTW and is suitable for single or multiple transceiver installations.
ELK Products Inc - M1XRFTWM - Features
- Allows up to 144 individual wireless zones (sensors/points)
- Operates from the 4 wire RS-485 Data Bus
- Up to 4 M1XRFTWM transceivers may be connected to a single M1 or M1EZ8 control for redundancy and greater coverage
- Flash memory for firmware updates
Specifications
Specifications
ELK Products Inc - M1XRFTWM - Specifications
| Operating Frequency | 902 Mhz to 928 Mhz |
|---|---|
| Sensitivity | >105 dbm |
| Operating Temperature | 0 to +120 degrees F |
| Operating Voltage | 12 Volts D.C. |
| Current Draw | 25mA receiving, 85mA transmitting |
| Housing Dimensions | 6.75” x 4.69” x 1.13” |
