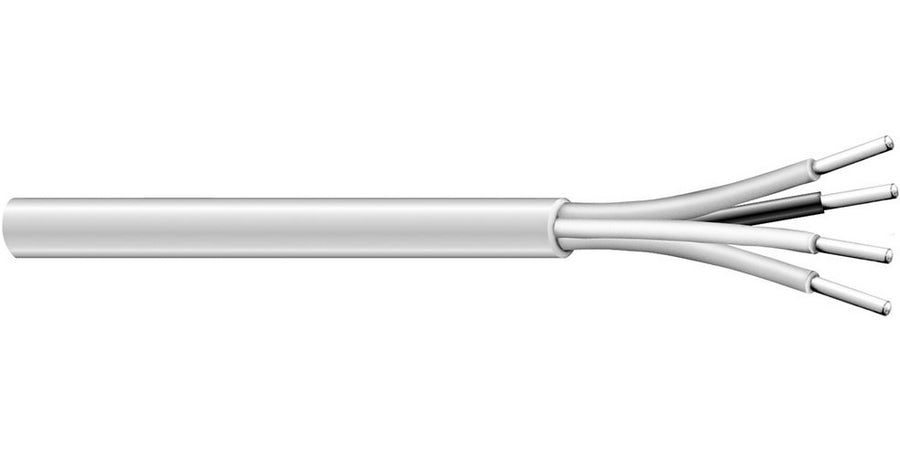

Encore Wire C0437A.41.10 | Control Tray Cable, 2, Annealed Copper, 16 AWG, Stranded, PVC Insulation, 0.013 in
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Encore Wire C0437A.41.10 | Control Tray Cable, 2, Annealed Copper, ...
Description
Description
The multi-conductor array of communication and control cable facilitates cable pull-ins and single-site installations. This cable is typically used for industrial equipment control, electric valve actuation and remote signaling, as well as communications and broadcast applications. These designs are available in a wide variety of insulation and jacketing materials, as well as shield designs to alleviate unwanted circuit noise.
Specifications
Specifications
Encore Wire - C0437A.41.10 - Applications
- Supports cable tray installations where power limited circuits are routed through commercial and industrial environments.
- Commonly used for power limited circuits requiring low-voltage control and signaling.
- Fits intercom systems where consistent signaling is needed between devices.
- Connects components in burglar alarms for low-voltage alarm and signaling circuits.
- Suitable for business machines that rely on low-voltage control wiring.
- Works with cash registers where control and signaling connections are required.
- Applied in automatic valve control systems to carry low-voltage control signals.
- Used in irrigation systems for low-voltage control and signaling connections.
Encore Wire - C0437A.41.10 - Specifications
| Manufacturer Name | Encore Wire |
|---|---|
| Manufacturer Part Number | C0437A.41.10 |
| Conductor Count | 2 Conductor |
| Item Description | Control Tray Cable, 2, Annealed Copper, 16 AWG, Stranded, PVC Insulation, 0.013 in |
| Conductor Material | Annealed Copper |
| Conductor Size | 16 Awg |
| Conductor Type | Stranded |
| Insulation Color Code | Red |
| Insulation Material | Pvc |
| Insulation Thickness | 0.013 In. |
| Jacket Color | Gray |
| Jacket Material | Pvc |
| Length | 1000 Ft. (304.8 M) |
| Product Type | Control Tray Cable |
| Shield Type | Unshielded |
| Special Rating | Ul, Ce, Nec/Cec |
| Temperature Rating | -20° To 105°C (-4° To 221°F) |
| Voltage | 300 V |
