Brand: Encore Wire
|
SKU:
C0451

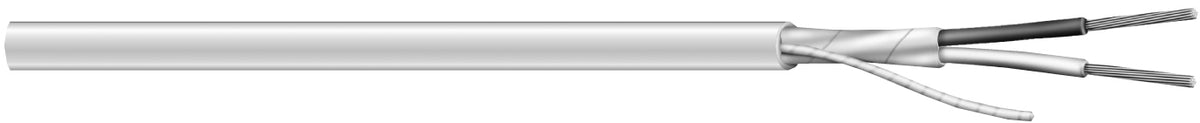

Encore Wire C0451A.41.10 | Power-Limited Tray Cable, 22 AWG, 3 Conductor, Stranded, Tin-Plated Copper Conductor
Regular price
$522.57
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Encore Wire C0451A.41.10 | Power-Limited Tray Cable, 22 AWG, 3 Cond...
Regular price
$522.57
Unit price
Description
Description
Encore Wire C0451A.41.10 | Power-Limited Tray Cable,22 AWG,3 Conductor,Stranded,Tin-Plated Copper Conductor
Power-Limited Tray Cable, Conductor Size: 22 AWG, Conductor Count: 3 Conductor, Conductor Type: Stranded, Conductor Material: Tin-Plated Copper, Temperature Rating: -20 to 105 C, Insulation Material: PVC, Insulation Thickness: 0.013 in., Shield Type: Unshielded, Jacket Material: PVC, Jacket Color: Gray, Voltage: 300 V, Length: 1000 ft., Conductor Stranding: 7 x 30 Strand, Dimensions: OD: 0.199 in., Special Rating: CSA, UL
Specifications
Specifications
Encore Wire - C0451A.41.10 - Applications
- Use it for communication and control wiring where a power-limited tray cable is required for NEC Type PLTC applications.
- Install it in tray environments where a UL tray cable rated construction is specified.
- Choose it for installations where an overall aluminum mylar foil shield helps reduce interference.
- Run it in outdoor-exposed applications where sunlight resistance and good weather resistance are needed.
Encore Wire - C0451A.41.10 - Specifications
| Manufacturer Name | Encore Wire |
|---|---|
| Manufacturer Part Number | C0451A.41.10 |
| Conductor Count | 3 Conductor |
| Item Description | Power-Limited Tray Cable,22 AWG,3 Conductor,Stranded,Tin-Plated Copper Conductor |
| Conductor Material | Tin-Plated Copper |
| Conductor Size | 22 Awg |
| Conductor Stranding | 7 X 30 Strand |
| Conductor Type | Stranded |
| Dimensions | Od: 0.199 In. |
| Insulation Color Code | White |
| Insulation Color | Gray |
| Insulation Material | Pvc |
| Insulation Thickness | 0.013 In. |
| Jacket Color | Gray |
| Jacket Material | Pvc |
| Length | 1000 Ft. (304.8 M) |
| Product Type | Power-Limited Tray Cable |
| Shield Type | Foil Shield |
| Special Rating | Ul, Ce, Nec/Cec |
| Temperature Rating | -20 To 105 C |
| Voltage | 300 V |
