Brand: Encore Wire
|
SKU:
C0453

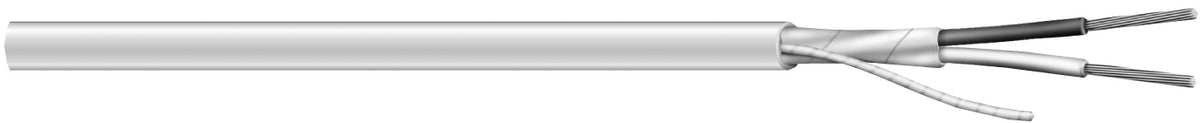

Encore Wire C0453A.41.10 | Control Tray Cable, 3, Annealed Copper, 20 AWG, PVC Insulation, 0.013 in Gray Jacket, PVC Jacket
Regular price
$696.29
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Encore Wire C0453A.41.10 | Control Tray Cable, 3, Annealed Copper, ...
Regular price
$696.29
Unit price
Description
Description
Encore Wire C0453A.41.10 | Control Tray Cable, 3, Annealed Copper, 20 AWG, PVC Insulation, 0.013 in Gray Jacket, PVC Jacket
Control Tray Cable, Conductor Count: 3, Conductor Material: Annealed Copper, Conductor Size: 20 AWG, Conductor Type: Stranded, Insulation Material: PVC, Insulation Thickness: 0.013 in., Jacket Color: Gray, Jacket Material: PVC, Length: 1000 ft., Temperature Rating: -20 to 105 C, Voltage: 300 VAC, Insulation Color: Gray, Special Rating: UL, CE, NEC/CEC
Specifications
Specifications
Encore Wire - C0453A.41.10 - Applications
- Use it for control and signal wiring in tray environments where a power-limited tray cable is required for NEC Type PLTC applications.
- Choose it for communication and control circuits where an overall aluminum mylar foil shield helps reduce electrical interference.
- Install it in locations that benefit from a sunlight-resistant PVC jacket and good weather resistance.
Encore Wire - C0453A.41.10 - Specifications
| Manufacturer Name | Encore Wire |
|---|---|
| Manufacturer Part Number | C0453A.41.10 |
| Conductor Count | 3 Conductor |
| Item Description | Control Tray Cable, 3, Annealed Copper, 20 AWG, PVC Insulation, 0.013 in Gray Jacket, PVC Jacket |
| Conductor Material | Annealed Copper |
| Conductor Size | 20 Awg |
| Conductor Type | Stranded |
| Insulation Color Code | White |
| Insulation Color | Gray |
| Insulation Material | Pvc |
| Insulation Thickness | 0.013 In. |
| Jacket Color | Gray |
| Jacket Material | Pvc |
| Length | 1000 Ft. (304.8 M) |
| Product Type | Control Tray Cable |
| Shield Type | Foil Shield |
| Special Rating | Ul, Ce, Nec/Cec |
| Temperature Rating | -20° To 105°C (-4° To 221°F) |
| Voltage | 300 V |
