Brand: Encore Wire
|
SKU:
C0458

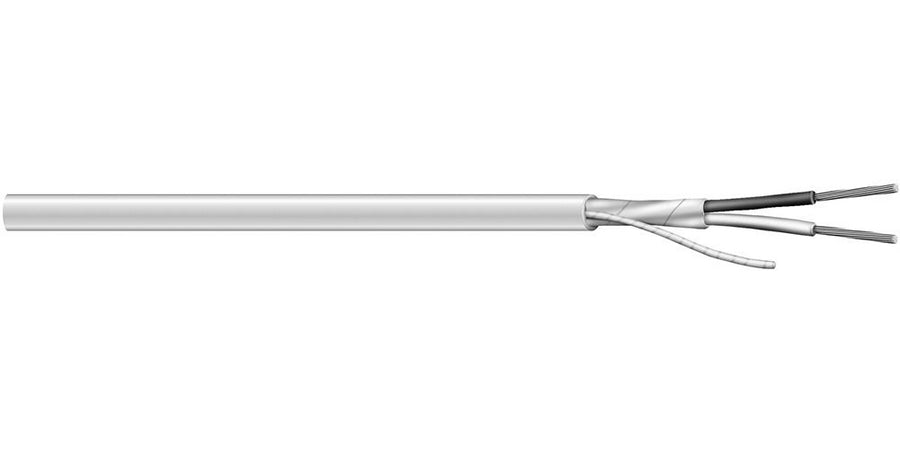

Encore Wire C0458A.41.10 | Control Tray Cable, 2, Annealed Copper, 14 AWG, PVC Insulation, 0.013 in. Thk, Gray Jacket, PVC Jacket, 1000 ft
Regular price
$1,633.65
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Encore Wire C0458A.41.10 | Control Tray Cable, 2, Annealed Copper, ...
Regular price
$1,633.65
Unit price
Description
Description
Encore Wire C0458A.41.10 | Control Tray Cable, 2, Annealed Copper, 14 AWG, PVC Insulation, 0.013 in. Thk, Gray Jacket, PVC Jacket, 1000 ft
Control Tray Cable, Conductor Count: 2, Conductor Material: Annealed Copper, Conductor Size: 14 AWG, Conductor Type: Stranded, Insulation Material: PVC, Insulation Thickness: 0.013 in., Jacket Color: Gray, Jacket Material: PVC, Length: 1000 ft., Temperature Rating: -20 to 105 C, Voltage: 300 VAC, Insulation Color: Gray, Special Rating: UL, CE, NEC/CEC
Specifications
Specifications
Encore Wire - C0458A.41.10 - Applications
- Designed for communication and control cable installations where a power-limited tray cable is required.
- Specified as NEC Type PLTC for power-limited tray cable applications.
- Meets needs for installations that require a UL tray cable rated construction.
- Supports outdoor weather exposure with a sunlight-resistant PVC jacket and good weather resistance.
- Helps improve noise rejection in communication and control circuits with an OVERALL ALUMINUM MYLAR foil shield.
Encore Wire - C0458A.41.10 - Specifications
| Manufacturer Name | Encore Wire |
|---|---|
| Manufacturer Part Number | C0458A.41.10 |
| Conductor Count | 2 Conductor |
| Item Description | Control Tray Cable, 2, Annealed Copper, 14 AWG, PVC Insulation, 0.013 in. Thk, Gray Jacket, PVC Jacket, 1000 ft |
| Conductor Material | Annealed Copper |
| Conductor Size | 14 Awg |
| Conductor Type | Stranded |
| Insulation Color Code | Red |
| Insulation Color | Gray |
| Insulation Material | Pvc |
| Insulation Thickness | 0.013 In. |
| Jacket Color | Gray |
| Jacket Material | Pvc |
| Length | 1000 Ft. (304.8 M) |
| Outside Diameter | 0.288 In. |
| Product Type | Control Tray Cable |
| Shield Type | Foil Shield |
| Special Rating | Ul, Ce, Nec/Cec |
| Temperature Rating | -20° To 105°C (-4° To 221°F) |
| Voltage | 300 V |
