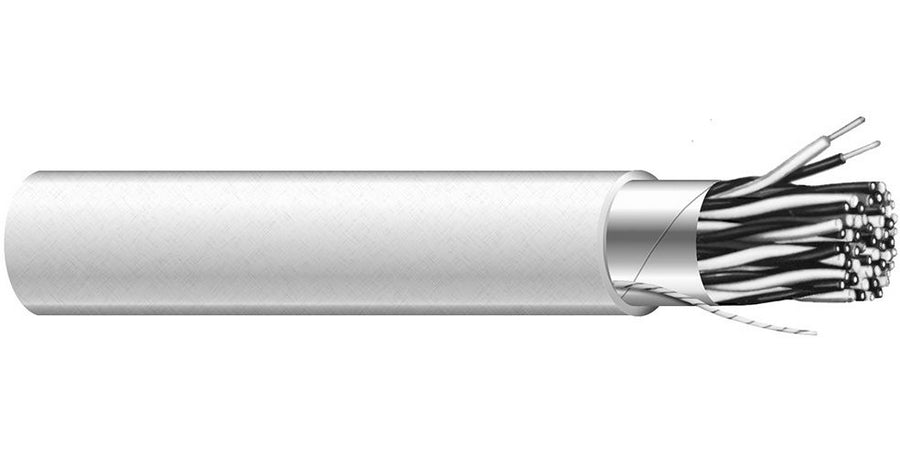

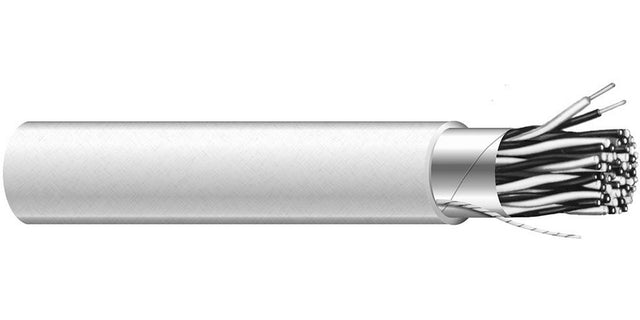

Encore Wire C0562A.41.10 | Conductor Cable, Gray, 18 AWG, 1000 ft. Lg, 300 VAC, 8, PVC Jacket, -20 to 105 C, PVC Insulation, Foil Shield
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Encore Wire C0562A.41.10 | Conductor Cable, Gray, 18 AWG, 1000 ft. ...
Description
Description
Paired cable designs find frequent application in circuits requiring circuit-to circuit isolation from noise, minimization of capacitance imbalances and a reduction of EMI interference currents. Circuit separation is further enhanced in those designs employing individual circuit shields in concert with an overall shield. These shielding systems are available from general cable in myriad combinations to suit the unique needs of the circuit designer.
Specifications
Specifications
Encore Wire - C0562A.41.10 - Applications
- Designed for power-limited circuits where a 300V 105C rated tray cable is required.
- Commonly used in intercom systems to support signal and control connections.
- Often used in business machines that require dependable signal and control wiring.
- Used for computer interconnects where an overall aluminum mylar foil shield helps reduce interference.
- Applied in petrochemical control systems for signal and control performance in demanding installations.
- Installed in burglar alarms to support power-limited signal and control wiring.
- Marked for appropriate tray cable installations.
Encore Wire - C0562A.41.10 - Specifications
| Manufacturer Name | Encore Wire |
|---|---|
| Manufacturer Part Number | C0562A.41.10 |
| Color | Gray |
| Item Description | Conductor Cable, Gray, 18 AWG, 1000 ft. Lg, 300 VAC, 8, PVC Jacket, -20 to 105 C, PVC Insulation, Foil Shield |
| Conductor Count | 8 Conductor |
| Conductor Material | Copper |
| Conductor Size | 18 Awg |
| Conductor Stranding | 16 Strands Per Conductor |
| Conductor Type | Stranded |
| Dimensions | Thk: 0.44 In. Insulation |
| Insulation Color Code | Black |
| Insulation Material | Pvc |
| Jacket Color | Gray |
| Jacket Material | Pvc |
| Length | 1000 Ft. (304.8 M) |
| Product Type | Conductor Cable |
| Shield Type | Foil Shield |
| Shielded | Shielded |
| Temperature Rating | -20°C To 80°C (-4°F To 221°F) |
| Voltage | 300 V |
