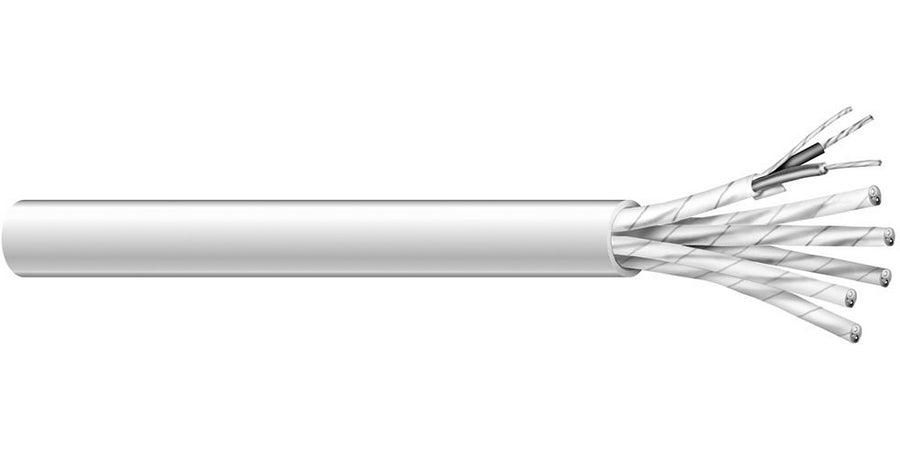

Encore Wire C0584A.41.10 | 18 AWG 2-Pair Stranded Tinned Copper PVC...
Description
Description
Paired cable designs find frequent application in circuits requiring circuit-to circuit isolation from noise, minimization of capacitance imbalances and a reduction of EMI interference currents. Circuit separation is further enhanced in those designs employing individual circuit shields in concert with an overall shield. These shielding systems are available from general cable in myriad combinations to suit the unique needs of the circuit designer.
Specifications
Specifications
Encore Wire - C0584A.41.10 - Applications
- Supports power-limited circuits where signal and control wiring is required.
- Commonly used in intercom systems.
- Works well in business machines where reliable interconnect wiring is needed.
- Often used in cash registers for interconnect applications.
- Suitable for computer interconnects in sensitive circuits.
- Applied in burglar alarms.
- Marked for appropriate tray cable installations.
Encore Wire - C0584A.41.10 - Specifications
| Manufacturer Name | Encore Wire |
|---|---|
| Manufacturer Part Number | C0584A.41.10 |
| Color | Gray |
| Item Description | 18 AWG 2-Pair Stranded Tinned Copper PVC Insulated, Overall PVC Jacket, Gray, 105°C, 300V |
| Conductor Count | 4 Conductor |
| Conductor Material | Copper |
| Conductor Size | 18 Awg |
| Conductor Stranding | 16 Strands Per Conductor |
| Conductor Type | Stranded |
| Dimensions | Thk: 0.38 In. Insulation |
| Insulation Color Code | Black |
| Insulation Material | Pvc |
| Jacket Color | Gray |
| Jacket Material | Pvc |
| Length | 1000 Ft. (304.8 M) |
| Product Type | Conductor Cable |
| Shield Type | Foil Shield |
| Shielded | Shielded |
| Temperature Rating | -20°C To 80°C (-4°F To 221°F) |
| Voltage | 300 V |
