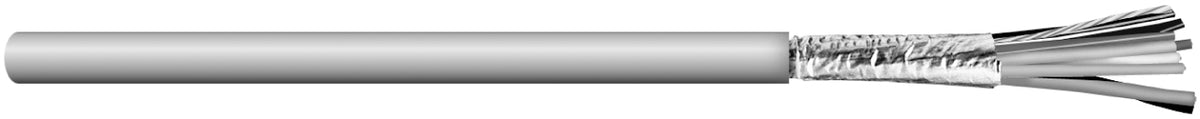

Encore Wire C0741A.41.10 | Multi-Conductor Cable, Red, 3 Conductor, Tinned Copper, 24 AWG, 7/32, Stranded, Semi-Rigid PVC, Gray, PVC, UL, 1000 ft
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Encore Wire C0741A.41.10 | Multi-Conductor Cable, Red, 3 Conductor,...
Description
Description
Multi-Conductor Cable, Approval Listings: CE, CSA, NEC, RoHS, UL, Color: Red, Conductor Count: 3, Conductor Material: Tinned Copper, Conductor Size: 24 AWG, Conductor Stranding: 7/32, Conductor Type: Stranded, Insulation: Semi-Rigid PVC, Jacket Color: Gray, Jacket Material: PVC, Jacket Rating: UL, Length: 1000 ft., Nominal OD: 0.164 in., Shield Material: Aluminum/Polyester, Shield Type: Shielded, Shielded: Shielded, Temperature Rating: -20 to 80 C, Voltage: 300 VAC, Connector Type: Bare Wire, Additional_Details: CMR
Specifications
Specifications
Encore Wire - C0741A.41.10 - Applications
- Supports reliable computer interconnections where consistent signal performance is needed.
- Enables data transmission in connected systems and equipment.
- Works in control circuits to carry control signals between devices.
- Used in industrial equipment control wiring setups.
- Meets EIA RS-232 applications where shielded signal cabling is required.
Encore Wire - C0741A.41.10 - Specifications
| Manufacturer Name | Encore Wire |
|---|---|
| Manufacturer Part Number | C0741A.41.10 |
| Color | Red |
| Item Description | Multi-Conductor Cable, Red, 3 Conductor, Tinned Copper, 24 AWG, 7/32, Stranded, Semi-Rigid PVC, Gray, PVC, UL, 1000 ft |
| Conductor Count | 3 Conductor |
| Conductor Material | Tinned Copper |
| Conductor Size | 24 Awg |
| Conductor Stranding | 7 Strands Per Conductor |
| Insulation Material | Pvc |
| Jacket Color | Gray |
| Jacket Material | Pvc |
| Length | 1000 Ft. |
| Product Type | Multi-Conductor Cable |
| Shield Type | Foil Shield |
| Special Rating | Ul Style 2464 |
| Temperature Rating | -20° To 80°C (-4° To 176°F) |
| Voltage | 300 V |
