Brand: Encore Wire
|
SKU:
C0754A

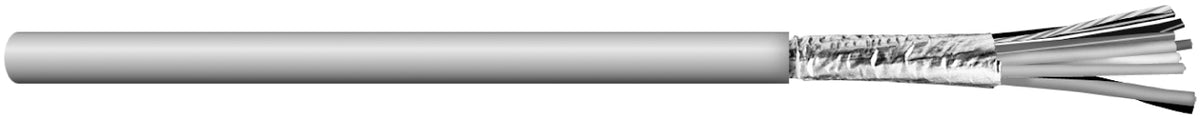

Encore Wire C0754A.41.10 | Cable, Conductor Count, 7 Conductors, 300V, Conductor Size, 24AWG
Regular price
$751.20
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Encore Wire C0754A.41.10 | Cable, Conductor Count, 7 Conductors, 30...
Regular price
$751.20
Unit price
Description
Description
Encore Wire C0754A.41.10 | Cable, Conductor Count, 7 Conductors, 300V, Conductor Size, 24AWG
Specifications
Specifications
Encore Wire - C0754A.41.10 - Applications
- Supports computer interconnections where control and signal wiring is required.
- Enables data transmission connections in compatible systems.
- Installs in control circuits for equipment signaling and control functions.
- Serves industrial equipment control circuits for control and signal wiring.
- Fits EIA RS-232 applications.
Encore Wire - C0754A.41.10 - Specifications
| Manufacturer Name | Encore Wire |
|---|---|
| Manufacturer Part Number | C0754A.41.10 |
| Conductor Count | 7 Conductor |
| Item Description | Cable, Conductor Count, 7 Conductors, 300V, Conductor Size, 24AWG |
| Conductor Material | Tinned Copper |
| Conductor Size | 24 Awg |
| Conductor Type | Stranded |
| Insulation Material | Pvc |
| Insulation Thickness | 0.01 In. (0.25Mm) |
| Jacket Color | Gray |
| Jacket Material | Pvc |
| Length | 100 Ft. (30.4M) |
| Shield Type | Foil Shield |
| Special Rating | Astm B33; Ul Awm Style 1061; Ul Style 2464; Csa Cmg; Rohs; Ul 70,000 Btu |
| Temperature Rating | -20° To 80°C (-4° To 176°F) |
| Voltage | 300 V |
