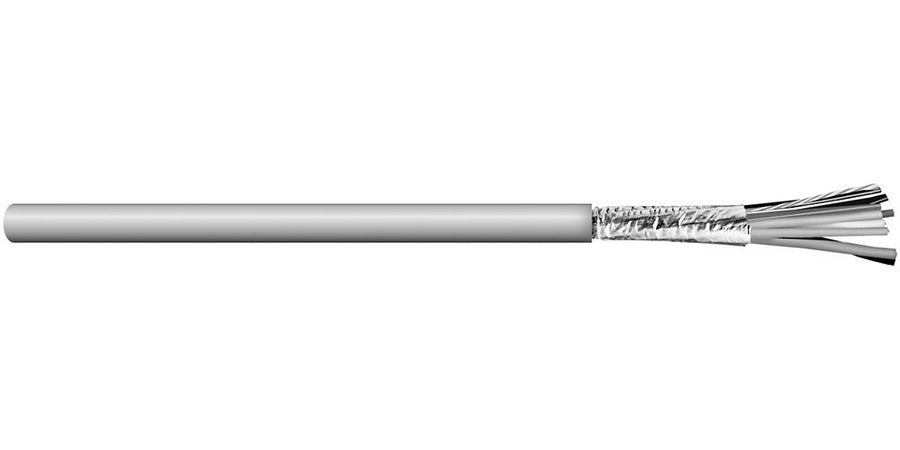

Encore Wire C0755A.41.10 | 24 AWG 9-Conductor Stranded Tinned Copper, Semi-Rigid PVC Insulation, Foil Shielded, PVC Jacket, 80°C 300V
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Encore Wire C0755A.41.10 | 24 AWG 9-Conductor Stranded Tinned Coppe...
Description
Description
Multi-Conductor Cable, Approval Listings: CE, CSA, NEC, RoHS, UL, Color: Green/Black, Conductor Count: 9, Conductor Material: Tinned Copper, Conductor Size: 24 AWG, Conductor Stranding: 7/32, Conductor Type: Stranded, Insulation: Semi-Rigid PVC, Jacket Color: Gray, Jacket Material: PVC, Jacket Rating: UL, Length: 1000 ft., Nominal OD: 0.228 in., Shield Material: Aluminum/Polyester, Shield Type: Shielded, Shielded: Shielded, Temperature Rating: -20 to 80 C, Voltage: 300 VAC, Connector Type: Bare Wire
Specifications
Specifications
Encore Wire - C0755A.41.10 - Applications
- Supports computer interconnections that require multiple conductors for signal and control wiring.
- Works well in data transmission circuits where overall shielding helps reduce interference.
- Fits control circuits in industrial equipment control systems.
- Meets the needs of EIA RS-232 applications.
Encore Wire - C0755A.41.10 - Specifications
| Manufacturer Name | Encore Wire |
|---|---|
| Manufacturer Part Number | C0755A.41.10 |
| Color | Green/Black |
| Item Description | 24 AWG 9-Conductor Stranded Tinned Copper, Semi-Rigid PVC Insulation, Foil Shielded, PVC Jacket, 80°C 300V |
| Conductor Count | 9 Conductor |
| Conductor Material | Tinned Copper |
| Conductor Size | 24 Awg |
| Conductor Stranding | 7 Strands Per Conductor |
| Insulation Material | Pvc |
| Jacket Color | Gray |
| Jacket Material | Pvc |
| Length | 1000 Ft. |
| Product Type | Multi-Conductor Cable |
| Shield Type | Foil Shield |
| Special Rating | Ul Style 2464 |
| Temperature Rating | -20° To 80°C (-4° To 176°F) |
| Voltage | 300 V |
