Brand: Encore Wire
|
SKU:
C0767

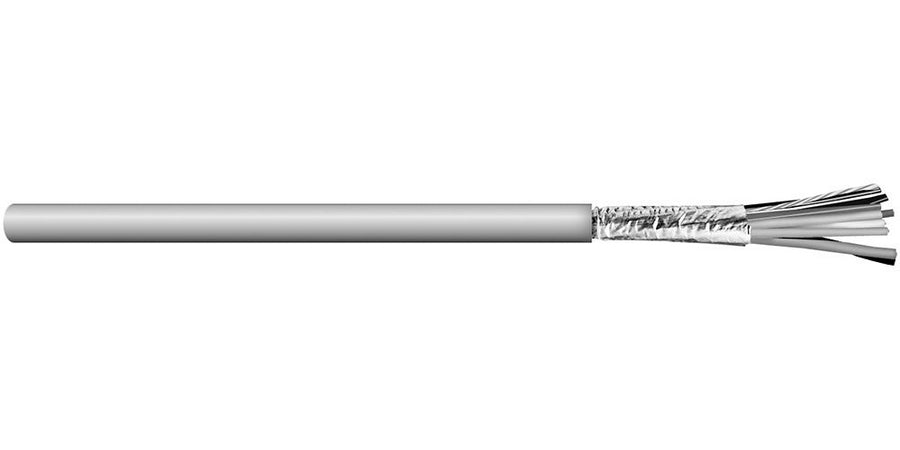

Encore Wire C0767A.41.10 | Multi-Conductor Cable, Red/Green, 20 Conductor, Tinned Copper, 22 AWG, 7/30, Stranded, Semi-Rigid PVC, Gray, 1000 ft
Regular price
$2,844.22
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Encore Wire C0767A.41.10 | Multi-Conductor Cable, Red/Green, 20 Con...
Regular price
$2,844.22
Unit price
Description
Description
Encore Wire C0767A.41.10 | Multi-Conductor Cable, Red/Green, 20 Conductor, Tinned Copper, 22 AWG, 7/30, Stranded, Semi-Rigid PVC, Gray, 1000 ft
This complete line of paired and unpaired, shielded computer cables-which are UL and CSA listed-are used primarily for the internal or external interconnection of electronic equipment and computers. Applications include data transmission, CAD/CAM, telemetering, data displays, computer print-out, credit verification systems and similar applications.
Specifications
Specifications
Encore Wire - C0767A.41.10 - Applications
- Supports computer interconnections where a listed control and data cable is required.
- Enables data transmission in installations that benefit from an overall shield and drain.
- Helps reduce interference in control circuits used for sensitive circuits.
- Serves industrial equipment control wiring in compliant installations.
- Works for EIA RS-232 applications.
Encore Wire - C0767A.41.10 - Specifications
| Manufacturer Name | Encore Wire |
|---|---|
| Manufacturer Part Number | C0767A.41.10 |
| Color | Red/Green |
| Item Description | Multi-Conductor Cable, Red/Green, 20 Conductor, Tinned Copper, 22 AWG, 7/30, Stranded, Semi-Rigid PVC, Gray, 1000 ft |
| Conductor Count | 20 Conductor |
| Conductor Material | Tinned Copper |
| Conductor Size | 22 Awg |
| Conductor Stranding | 7 Strands Per Conductor |
| Insulation Material | Pvc |
| Jacket Color | Gray |
| Jacket Material | Pvc |
| Length | 1000 Ft. |
| Product Type | Multi-Conductor Cable |
| Shield Type | Foil Shield |
| Special Rating | Ul Style 2464 |
| Temperature Rating | -20° To 80°C (-4° To 176°F) |
| Voltage | 300 V |
