Brand: Encore Wire
|
SKU:
C0768

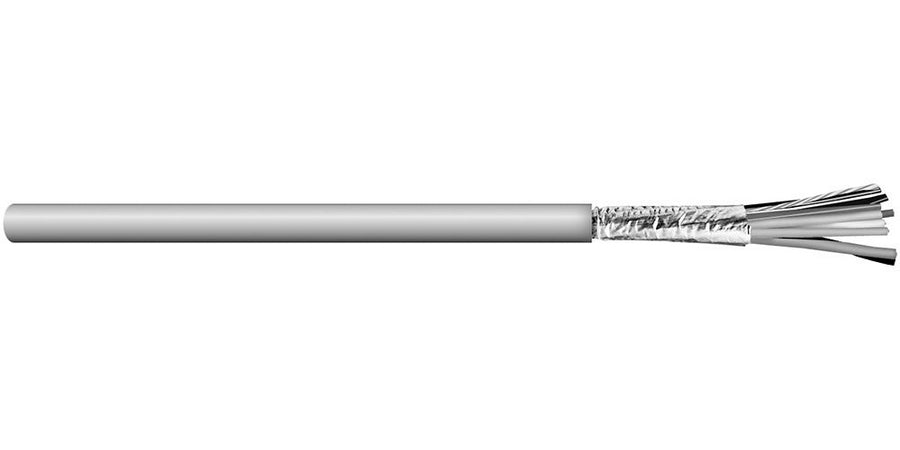

Encore Wire C0768A.41.10 | Multi-Conductor Cable, Black/White/Green, 25 Conductor, Tinned Copper, 22 AWG, 7/30, Stranded, Semi-Rigid PVC, Gray
Regular price
$3,165.17
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Encore Wire C0768A.41.10 | Multi-Conductor Cable, Black/White/Green...
Regular price
$3,165.17
Unit price
Description
Description
Encore Wire C0768A.41.10 | Multi-Conductor Cable, Black/White/Green, 25 Conductor, Tinned Copper, 22 AWG, 7/30, Stranded, Semi-Rigid PVC, Gray
This complete line of paired and unpaired, shielded computer cables-which are UL and CSA listed-are used primarily for the internal or external interconnection of electronic equipment and computers. Applications include data transmission, CAD/CAM, telemetering, data displays, computer print-out, credit verification systems and similar applications.
Specifications
Specifications
Encore Wire - C0768A.41.10 - Applications
- Supports computer interconnections where multiple signal paths are needed between devices.
- Enables data transmission connections in equipment and system wiring.
- Fits control circuits that require multi-conductor wiring for control and signal functions.
- Serves industrial equipment control wiring within control systems.
- Works for EIA RS-232 applications in serial communication setups.
Encore Wire - C0768A.41.10 - Specifications
| Manufacturer Name | Encore Wire |
|---|---|
| Manufacturer Part Number | C0768A.41.10 |
| Approval Listings | Ce, Csa, Nec, Rohs, Ul |
| Item Description | Multi-Conductor Cable, Black/White/Green, 25 Conductor, Tinned Copper, 22 AWG, 7/30, Stranded, Semi-Rigid PVC, Gray |
| Conductor Count | 25 |
| Conductor Material | Tinned Or Coated Copper |
| Conductor Size | 22 Awg |
| Conductor Stranding | 7 Strands Per Conductor |
| Conductor Type | Stranded |
| Insulation Material | Srpvc-Semi-Rigid Polyvinyl Chloride |
| Jacket Color | Gray |
| Jacket Material | Pvc-Polyvinyl Chloride |
| Jacket Rating | Ul |
| Length | 1000 Ft. |
| Nominal O.D. | 0.369 In. |
| Shield Material | Aluminum/Polyester |
| Shield Type | Shielded |
| Shielded | Shielded |
| Temperature Rating | -20 To 80 C |
| Voltage | 300 V |
