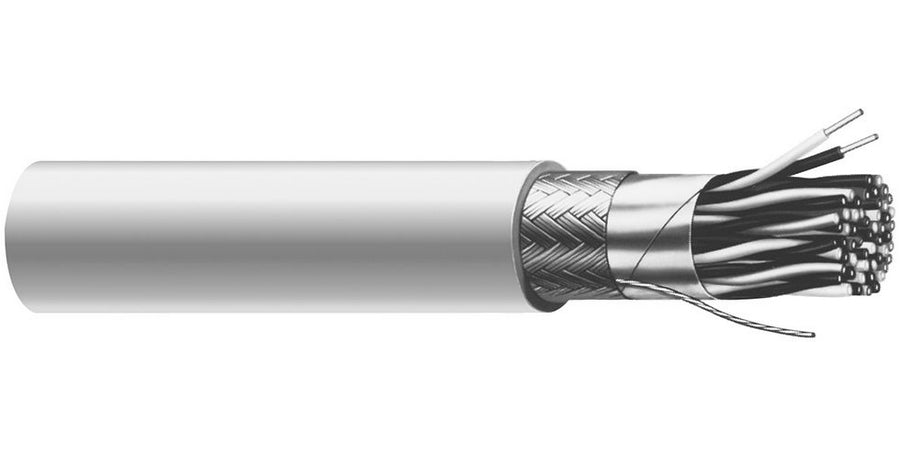

Encore Wire C0842A.41.10 | Multi-Conductor Cable, 4 Conductor, Tinned Copper, 24 AWG, 7/32, Stranded, Polyethylene, Gray, PVC, 1000 ft
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Encore Wire C0842A.41.10 | Multi-Conductor Cable, 4 Conductor, Tinn...
Description
Description
Multi-Conductor Cable, Approval Listings: CE, CSA, NEC, RoHS, UL, Conductor Count: 4, Conductor Material: Tinned Copper, Conductor Size: 24 AWG, Conductor Stranding: 7/32, Conductor Type: Stranded, Insulation: Polyethylene, Jacket Color: Gray, Jacket Material: PVC, Jacket Rating: UL, Length: 1000 ft., Nominal OD: 0.304 in., Shield Material: Aluminum/Polyester, Shield Type: Shielded, Shielded: Shielded, Temperature Rating: -20 to 80 C, Voltage: 300 VAC
Specifications
Specifications
Encore Wire - C0842A.41.10 - Applications
- Supports computers where low capacitance requirements are important for signal handling.
- Works well in industrial equipment installations that need noise rejection in electrically noisy environments.
- Enables data transmission in applications requiring reliable signal performance.
- Helps reduce electrical noise in control circuits where shielding is needed.
- Meets the needs of EIA RS-485 applications.
Encore Wire - C0842A.41.10 - Specifications
| Manufacturer Name | Encore Wire |
|---|---|
| Manufacturer Part Number | C0842A.41.10 |
| Approval Listings | Ce, Csa, Nec, Rohs, Ul |
| Item Description | Multi-Conductor Cable, 4 Conductor, Tinned Copper, 24 AWG, 7/32, Stranded, Polyethylene, Gray, PVC, 1000 ft |
| Conductor Count | 4 |
| Conductor Material | Tinned Or Coated Copper |
| Conductor Size | 24 Awg |
| Conductor Stranding | 7 Strands Per Conductor |
| Conductor Type | Stranded |
| Insulation Material | Polyethylene |
| Jacket Color | Gray |
| Jacket Material | Pvc-Polyvinyl Chloride |
| Jacket Rating | Ul |
| Length | 1000 Ft. |
| Nominal O.D. | 0.304 In. |
| Product Type | Multi-Conductor Cable |
| Shield Material | Aluminum/Polyester |
| Shield Type | Shielded |
| Shielded | Shielded |
| Temperature Rating | -20 To 80 C |
| Voltage | 300 V |
