Brand: Encore Wire
|
SKU:
C0910
Encore Wire C0910A.41.10 | 24 AWG 2-Pair Stranded Tinned Copper, Polypropylene Insulated, Individually Foil Shielded Pairs, PVC Jacketed, 60°C
Regular price
$934.27
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Encore Wire C0910A.41.10 | 24 AWG 2-Pair Stranded Tinned Copper, Po...
Regular price
$934.27
Unit price
Description
Description

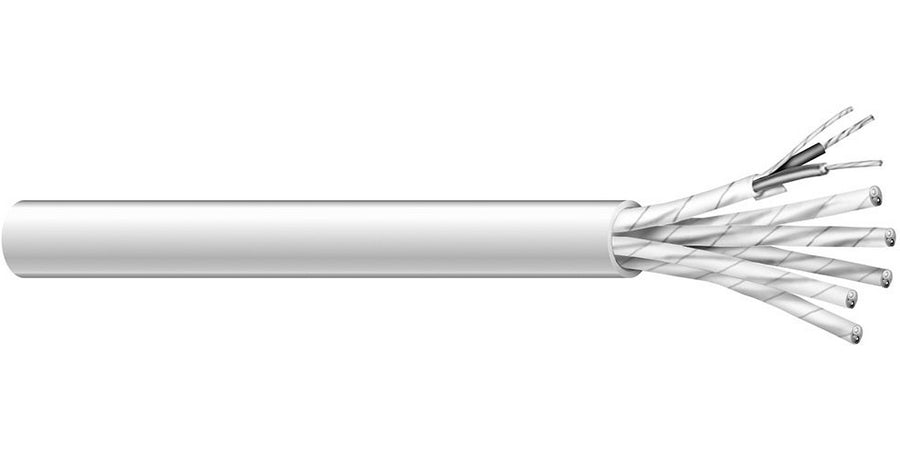

Encore Wire C0910A.41.10 | 24 AWG 2-Pair Stranded Tinned Copper, Polypropylene Insulated, Individually Foil Shielded Pairs, PVC Jacketed, 60°C
General cable manufactures a comprehensive line of computer cables. This complete line of paired and unpaired, shielded computer cables-which are UL and CSA listed-are used primarily for the internal or external interconnection of electronic equipment and computers. Applications include data transmission, CAD/CAM, telemetering, data displays, computer print-out, credit verification systems and similar applications.
Specifications
Specifications
Encore Wire - C0910A.41.10 - Applications
- Supports signal connections in high-speed computers where low capacitance is required.
- Meets industrial equipment wiring needs in demanding installations.
- Helps maintain reliable signal integrity in control circuits.
- Serves low capacitance applications that benefit from individually shielded pairs for signal isolation.
- Supports EIA RS-422 CAD/CAM applications.
Encore Wire - C0910A.41.10 - Specifications
| Manufacturer Name | Encore Wire |
|---|---|
| Manufacturer Part Number | C0910A.41.10 |
| Approval Listings | Ce, Nec, Rohs, Ul |
| Item Description | 24 AWG 2-Pair Stranded Tinned Copper, Polypropylene Insulated, Individually Foil Shielded Pairs, PVC Jacketed, 60°C |
| Conductor Count | 4 |
| Conductor Material | Tinned Or Coated Copper |
| Conductor Size | 24 Awg |
| Conductor Stranding | 7 Strands Per Conductor |
| Conductor Type | Stranded |
| Insulation Material | Polypropylene |
| Jacket Color | Gray |
| Jacket Material | Pvc-Polyvinyl Chloride |
| Jacket Rating | Ul |
| Length | 1000 Ft. |
| Nominal O.D. | 0.283 In. |
| Package Type | Reel |
| Product Type | Multi-Conductor Cable |
| Shield Material | Aluminum/Polyester |
| Shield Type | Shielded |
| Shielded | Shielded |
| Temperature Rating | -20 To 75 C |
| Voltage | 300 V |
