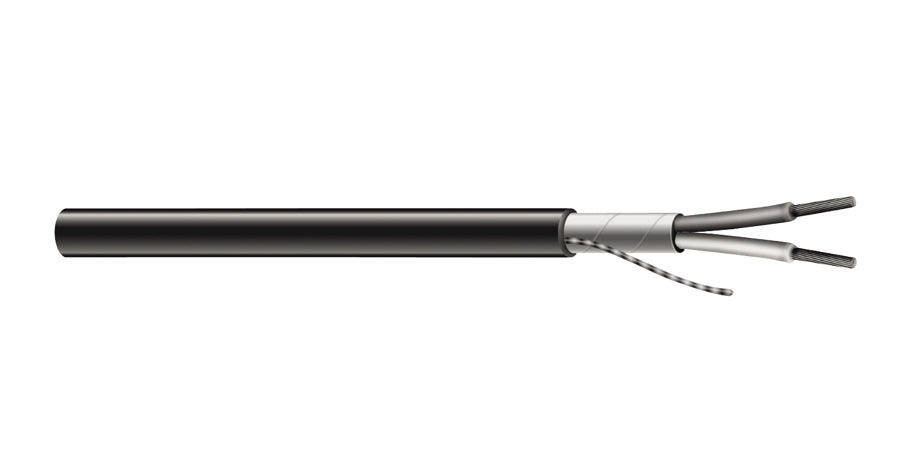

Encore Wire C1228A.21.01 | Multi-Conductor Cable, RoHS, Black, Tinned Copper, 24 AWG, 19/36, Stranded, Polypropylene, Black, PVC, 1000 ft
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Encore Wire C1228A.21.01 | Multi-Conductor Cable, RoHS, Black, Tinn...
Description
Description
Multi-Conductor Cable, Approval Listings: RoHS, Color: Black, Conductor Count: 2, Conductor Material: Tinned Copper, Conductor Size: 24 AWG, Conductor Stranding: 19/36, Conductor Type: Stranded, Insulation: Polypropylene, Jacket Color: Black, Jacket Material: PVC, Length: 1000 ft., Nominal OD: 0.135 in., Shield Material: Aluminum/Polyester, Shield Type: Shielded, Shielded: Shielded, Temperature Rating: -20 to 75 C, Voltage: 300 VAC
Specifications
Specifications
Encore Wire - C1228A.21.01 - Applications
- Designed for electronic circuits where RF shielding is required to help reduce noise in sensitive signal paths.
- Suitable for radio transmitter wiring where shielding is needed for cleaner signal performance.
- Used in sound system installations to help minimize interference in audio signal runs.
- Applied in recording studio installations where noise reduction is important for signal integrity.
Encore Wire - C1228A.21.01 - Specifications
| Manufacturer Name | Encore Wire |
|---|---|
| Manufacturer Part Number | C1228A.21.01 |
| Approval Listings | Rohs |
| Item Description | Multi-Conductor Cable, RoHS, Black, Tinned Copper, 24 AWG, 19/36, Stranded, Polypropylene, Black, PVC, 1000 ft |
| Color | Black |
| Conductor Count | 2 |
| Conductor Material | Tinned Or Coated Copper |
| Conductor Size | 24 Awg |
| Conductor Stranding | 19 Strands Per Conductor |
| Conductor Type | Stranded |
| Insulation Material | Polypropylene |
| Jacket Color | Black |
| Jacket Material | Pvc-Polyvinyl Chloride |
| Length | 1000 Ft. |
| Nominal O.D. | 0.135 In. |
| Product Type | Multi-Conductor Cable |
| Shield Material | Aluminum/Polyester |
| Shield Type | Shielded |
| Shielded | Shielded |
| Temperature Rating | -20 To 75 C |
| Voltage | 300 V |
