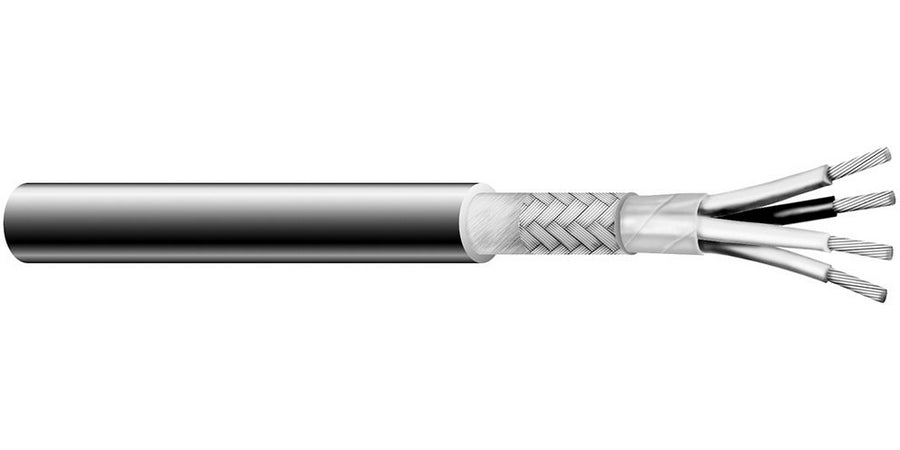

Encore Wire C1305.41.01 | Multi-Conductor Cable, Green, 4 Conductor, Tinned Copper, 20 AWG, 26/34, Stranded, Rubber, Black, Rubber, 1000 ft
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Encore Wire C1305.41.01 | Multi-Conductor Cable, Green, 4 Conductor...
Description
Description
The multi-conductor array of communication and control cable facilitates cable pull-ins and single-site installations. This cable is typically used for industrial equipment control, electric valve actuation and remote signaling, as well as communications and broadcast applications. These designs are available in a wide variety of insulation and jacketing materials, as well as shield designs to alleviate unwanted circuit noise.
Specifications
Specifications
Encore Wire - C1305.41.01 - Applications
- Supports signal and power transmission where a multi-conductor cable is needed.
- Reduces noise in installations that benefit from a braid shielded design with an overall braid shield construction.
- Works well in general-purpose applications where Rubber insulation and Rubber jacket are preferred.
Encore Wire - C1305.41.01 - Specifications
| Manufacturer Name | Encore Wire |
|---|---|
| Manufacturer Part Number | C1305.41.01 |
| Color | Green |
| Item Description | Multi-Conductor Cable, Green, 4 Conductor, Tinned Copper, 20 AWG, 26/34, Stranded, Rubber, Black, Rubber, 1000 ft |
| Conductor Count | 4 Conductor |
| Conductor Material | Tinned Copper |
| Conductor Size | 20 Awg |
| Conductor Stranding | 26 Strands Per Conductor |
| Insulation Material | Other Insulation Material |
| Jacket Color | Black |
| Jacket Material | Other Jacket Material |
| Length | 1000 Ft. |
| Product Type | Multi-Conductor Cable |
| Shield Type | Braid Shield |
| Temperature Rating | -20° To 60°C (-4° To 140°F) |
| Voltage | 300 V |
