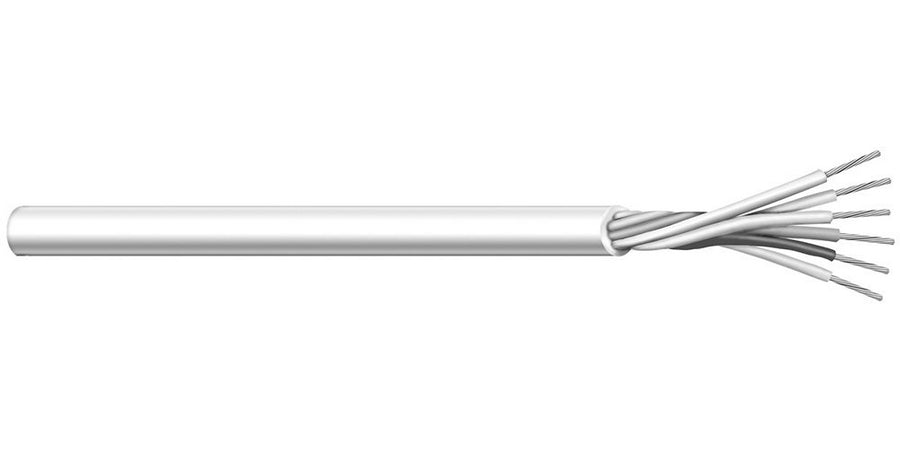

Encore Wire C2426A.41.10 | Multi-Conductor Cable, 7 Conductor, 19 x...
Description
Description
Multi-Conductor Cable, Conductor Size: 16 AWG, Conductor Count: 7 Conductor, Conductor Stranding: 19 x 0.0117 Strand, Conductor Material: Annealed Tinned Copper, Insulation Material: PVC, Insulation Thickness: 0.021 in., Shield Type: Unshielded, Jacket Material: PVC, Jacket Color: Gray, Voltage: 300 V, Special Rating: CSA, UL, Temperature Rating: -20 to 105 C, Conductor Type: Stranded, Length: 1000 ft., Outside Diameter: 0.363 in., Special Feature: Premium-Grade
Specifications
Specifications
Encore Wire - C2426A.41.10 - Applications
- Supports public address systems where multi-conductor signal wiring is needed.
- Connects intercom system components in typical installations.
- Serves internal telephones and related in-building communications wiring.
- Fits remote control circuits that require multiple conductors in one cable.
- Meets EIA RS-232 applications where multi-conductor connections are required.
Encore Wire - C2426A.41.10 - Specifications
| Manufacturer Name | Encore Wire |
|---|---|
| Manufacturer Part Number | C2426A.41.10 |
| Conductor Count | 7 Conductor |
| Item Description | Multi-Conductor Cable, 7 Conductor, 19 x 0.0117 Strand, Annealed Tinned Copper Conductor |
| Conductor Material | Tinned Copper |
| Conductor Size | 16 Awg |
| Conductor Stranding | 19 Strands Per Conductor |
| Conductor Type | Stranded |
| Insulation Material | Pvc |
| Insulation Thickness | 0.021 In. (0.53 Mm) |
| Jacket Color | Gray |
| Jacket Material | Pvc |
| Length | 1000 Ft. |
| Outside Diameter | 0.363 In. |
| Product Type | Multi-Conductor Cable |
| Shield Type | Unshielded |
| Special Feature | Premium-Grade |
| Special Rating | Csa, Ul |
| Temperature Rating | -20 To 105 C |
| Voltage | 300 V |
