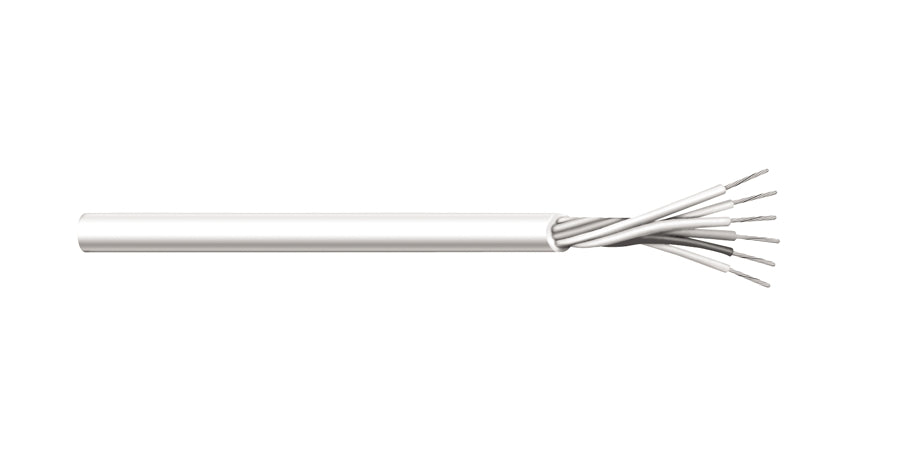

Encore Wire C2462A.41.10 | Multi-Conductor Cable, Red, 3 Conductor, Tinned Copper, Fully Annealed Stranded, Semi-Rigid PVC, Gray
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Encore Wire C2462A.41.10 | Multi-Conductor Cable, Red, 3 Conductor,...
Description
Description
The multi-conductor array of communication and control cable facilitates cable pull-ins and single-site installations. This cable is typically used for industrial equipment control, electric valve actuation and remote signaling, as well as communications and broadcast applications. These designs are available in a wide variety of insulation and jacketing materials, as well as shield designs to alleviate unwanted circuit noise.
Specifications
Specifications
Encore Wire - C2462A.41.10 - Applications
- Public address systems use it where control and communication wiring is needed.
- Intercom installations rely on it for signal and control connections.
- Building communication systems use it for internal telephones.
- Remote control circuits use it in general-purpose installations.
- EIA RS-232 applications can use it.
Encore Wire - C2462A.41.10 - Specifications
| Manufacturer Name | Encore Wire |
|---|---|
| Manufacturer Part Number | C2462A.41.10 |
| Color | Red |
| Item Description | Multi-Conductor Cable, Red, 3 Conductor, Tinned Copper, Fully Annealed Stranded, Semi-Rigid PVC, Gray |
| Conductor Count | 3 Conductor |
| Conductor Material | Tinned Copper |
| Conductor Size | 24 Awg |
| Conductor Stranding | 7 Strands Per Conductor |
| Insulation Material | Pvc |
| Jacket Color | Gray |
| Jacket Material | Pvc |
| Length | 1000 Ft. |
| Product Type | Multi-Conductor Cable |
| Shield Type | Unshielded |
| Temperature Rating | -20° To 80°C (-4° To 176°F) |
| Voltage | 300 V |
