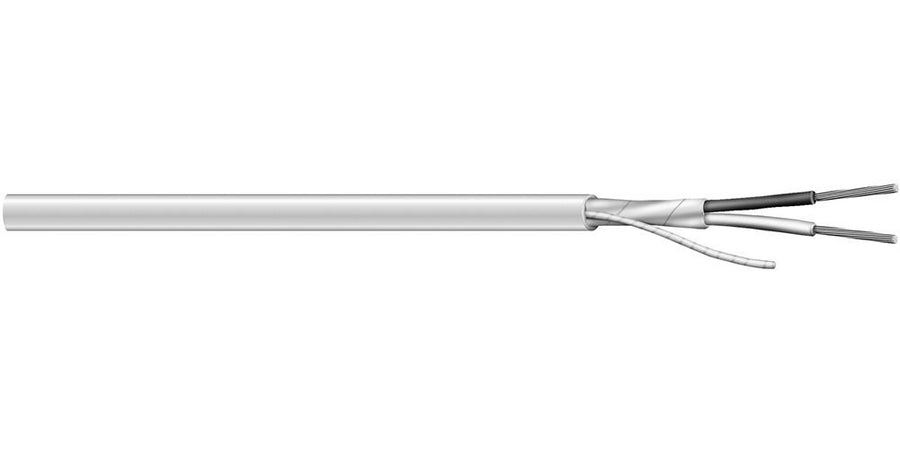

Encore Wire C2524A.41.10 | 20 AWG 1-Pair Stranded TNC Cable with PE Insulation, Overall Foil Shield, Gray PVC Jacket, 60°C, 300V
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Encore Wire C2524A.41.10 | 20 AWG 1-Pair Stranded TNC Cable with PE...
Description
Description
The multi-conductor array of communication and control cable facilitates cable pull-ins and single-site installations. This cable is typically used for industrial equipment control, electric valve actuation and remote signaling, as well as communications and broadcast applications. These designs are available in a wide variety of insulation and jacketing materials, as well as shield designs to alleviate unwanted circuit noise.
Specifications
Specifications
Encore Wire - C2524A.41.10 - Applications
- Use in recording studios and sound stages where shielded signal cabling helps reduce noise.
- Support broadcast and sound systems that benefit from an overall foil shield for cleaner signal performance.
- Install with computers and related equipment where a shielded multi-conductor cable is required.
- Apply for industrial equipment control wiring in professional and industrial installations.
Encore Wire - C2524A.41.10 - Specifications
| Manufacturer Name | Encore Wire |
|---|---|
| Manufacturer Part Number | C2524A.41.10 |
| Approval Listings | Csa, Rohs, Ul |
| Item Description | 20 AWG 1-Pair Stranded TNC Cable with PE Insulation, Overall Foil Shield, Gray PVC Jacket, 60°C, 300V |
| Csa | Ft4 Vertical Flame Test - Cables In Cable Trays |
| Color | Conductor Natural |
| Conductor Count | 2 |
| Conductor Material | Tinned Or Coated Copper |
| Conductor Size | 20 Awg |
| Conductor Stranding | 7 Strands Per Conductor |
| Conductor Type | Fully Annealed Solid/Stranded |
| Insulation Material | Polyethylene |
| Jacket Color | Gray |
| Jacket Material | Pvc-Polyvinyl Chloride |
| Jacket Rating | Ul |
| Length | 1000 Ft. |
| Nominal O.D. | 0.167 In. |
| Product Type | Multi-Conductor Cable |
| Shield Material | Aluminized Polyester |
| Shield Type | Stp-Shielded Twisted Pair |
| Shielded | Stp-Shielded Twisted Pair |
| Temperature Rating | -20 To 75 C |
| Voltage | 300 V |
