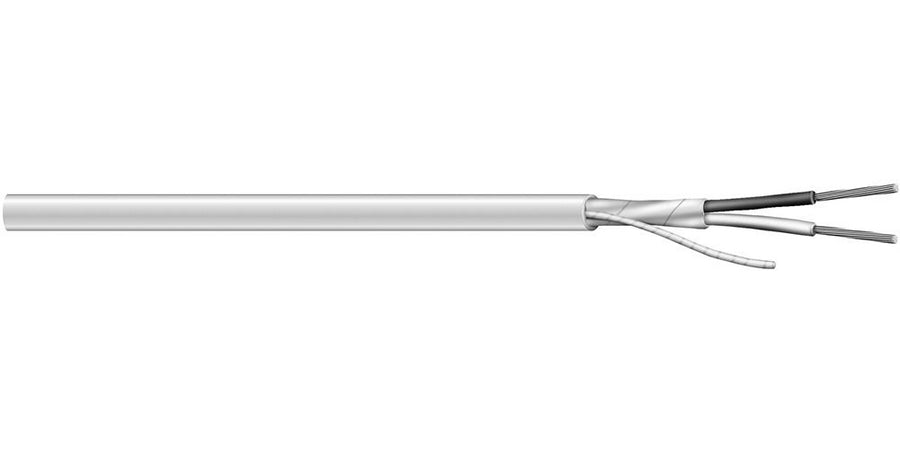

Encore Wire C2535A.41.10 | 18 AWG 3-Conductor Stranded TNC Cable with PE Insulation, Foil Shield, Gray PVC Jacket, 75°C, 300V
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Encore Wire C2535A.41.10 | 18 AWG 3-Conductor Stranded TNC Cable wi...
Description
Description
The multi-conductor array of communication and control cable facilitates cable pull-ins and single-site installations. This cable is typically used for industrial equipment control, electric valve actuation and remote signaling, as well as communications and broadcast applications. These designs are available in a wide variety of insulation and jacketing materials, as well as shield designs to alleviate unwanted circuit noise.
Specifications
Specifications
Encore Wire - C2535A.41.10 - Applications
- Recording studios and sound stages where clean signal performance is needed for audio and production setups.
- Broadcast and sound systems that benefit from shielding to help reduce interference in demanding environments.
- Computers and related equipment where a multi-conductor cable is used for signal and control connections.
- Industrial equipment control applications that require reliable multi-conductor wiring for control functions.
Encore Wire - C2535A.41.10 - Specifications
| Manufacturer Name | Encore Wire |
|---|---|
| Manufacturer Part Number | C2535A.41.10 |
| Color | Conductor Natural |
| Item Description | 18 AWG 3-Conductor Stranded TNC Cable with PE Insulation, Foil Shield, Gray PVC Jacket, 75°C, 300V |
| Conductor Count | 3 Conductor |
| Conductor Material | Tinned Copper |
| Conductor Size | 18 Awg |
| Conductor Stranding | 16 Strands Per Conductor |
| Insulation Material | Pe |
| Jacket Color | Gray |
| Jacket Material | Pvc |
| Length | 1000 Ft. |
| Product Type | Multi-Conductor Cable |
| Shield Type | Foil Shield |
| Temperature Rating | -20° To 75°C (-4° To 167°F) |
| Voltage | 300 V |
