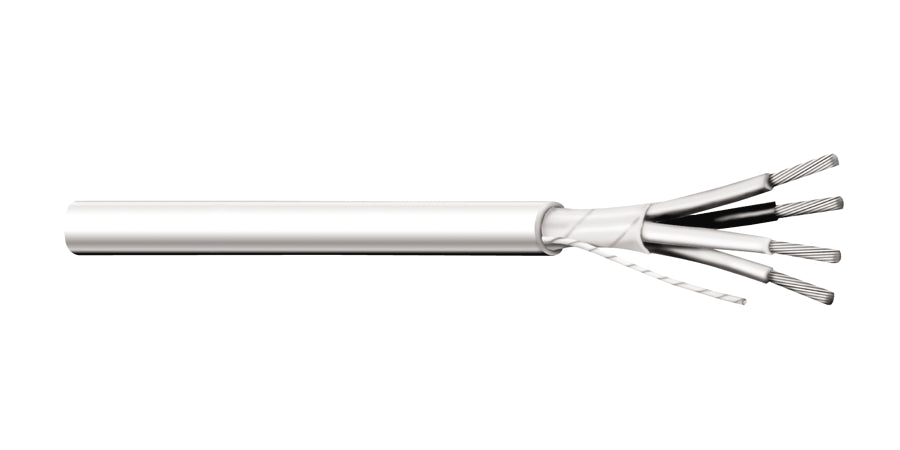

Encore Wire C2543A.41.10 | 18 AWG 4-Conductor Stranded TNC Cable with SRPVC Insulation, Foil Shield, Gray PVC Jacket
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Encore Wire C2543A.41.10 | 18 AWG 4-Conductor Stranded TNC Cable wi...
Description
Description
The multi-conductor array of communication and control cable facilitates cable pull-ins and single-site installations. This cable is typically used for industrial equipment control, electric valve actuation and remote signaling, as well as communications and broadcast applications. These designs are available in a wide variety of insulation and jacketing materials, as well as shield designs to alleviate unwanted circuit noise.
Specifications
Specifications
Encore Wire - C2543A.41.10 - Applications
- Use in audio, broadcast, instrumentation, and sound system installations where shielded signal cabling is needed.
Encore Wire - C2543A.41.10 - Specifications
| Manufacturer Name | Encore Wire |
|---|---|
| Manufacturer Part Number | C2543A.41.10 |
| Color | Conductor Green |
| Item Description | 18 AWG 4-Conductor Stranded TNC Cable with SRPVC Insulation, Foil Shield, Gray PVC Jacket |
| Conductor Count | 4 Conductor |
| Conductor Material | Tinned Copper |
| Conductor Size | 18 Awg |
| Conductor Stranding | 19 Strands Per Conductor |
| Insulation Material | Pe |
| Insulation Thickness | 0.032 In. (0.81 Mm) |
| Jacket Color | Gray |
| Jacket Material | Pvc |
| Length | 1000 Ft. |
| Product Type | Multi-Conductor Cable |
| Shield Type | Foil Shield |
| Special Rating | Csa; Rohs; Ul |
| Temperature Rating | 75 Degrees Celsius |
| Voltage | 600 V |
