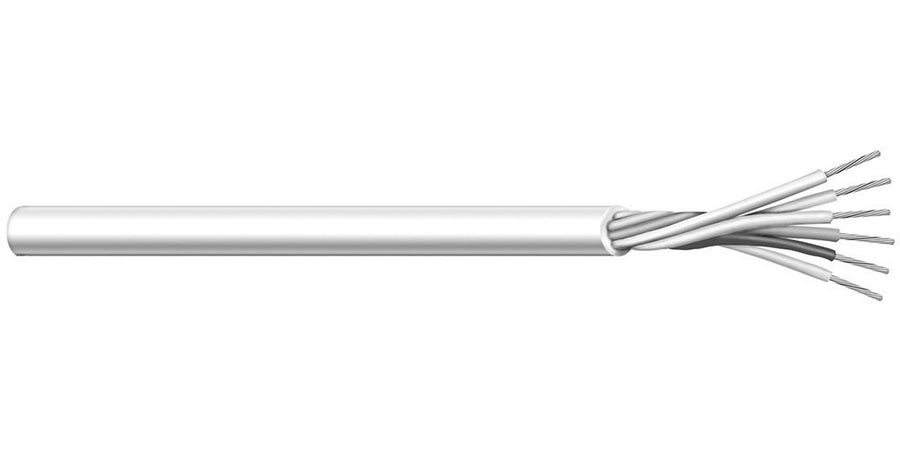

Encore Wire C4065A.41.10 | 22 AWG 8-Conductor Stranded TNC Cable wi...
Description
Description
The multi-conductor array of communication and control cable facilitates cable pull-ins and single-site installations. This cable is typically used for industrial equipment control, electric valve actuation and remote signaling, as well as communications and broadcast applications. These designs are available in a wide variety of insulation and jacketing materials, as well as shield designs to alleviate unwanted circuit noise.
Specifications
Specifications
Encore Wire - C4065A.41.10 - Applications
- Supports signal and control wiring in public address systems.
- Works well for intercom wiring where multi-conductor runs are needed.
- Fits internal telephone wiring within systems and equipment.
- Meets the needs of remote control circuits that require multiple conductors in one cable.
- Handles EIA RS-232 applications.
Encore Wire - C4065A.41.10 - Specifications
| Manufacturer Name | Encore Wire |
|---|---|
| Manufacturer Part Number | C4065A.41.10 |
| Color | Yellow |
| Item Description | 22 AWG 8-Conductor Stranded TNC Cable with SRPVC Insulation, PVC Jacket |
| Conductor Count | 8 Conductor |
| Conductor Material | Tinned Copper |
| Conductor Size | 22 Awg |
| Conductor Stranding | 7 Strands Per Conductor |
| Insulation Material | Pvc |
| Jacket Color | Gray |
| Jacket Material | Pvc |
| Length | 1000 Ft. |
| Product Type | Multi-Conductor Cable |
| Shield Type | Unshielded |
| Temperature Rating | -20° To 80°C (-4° To 176°F) |
| Voltage | 300 V |
