Encore Wire C4073A.41.10 | Multi-Conductor Cable, 15 Conductor, 7 x...
Description
Description

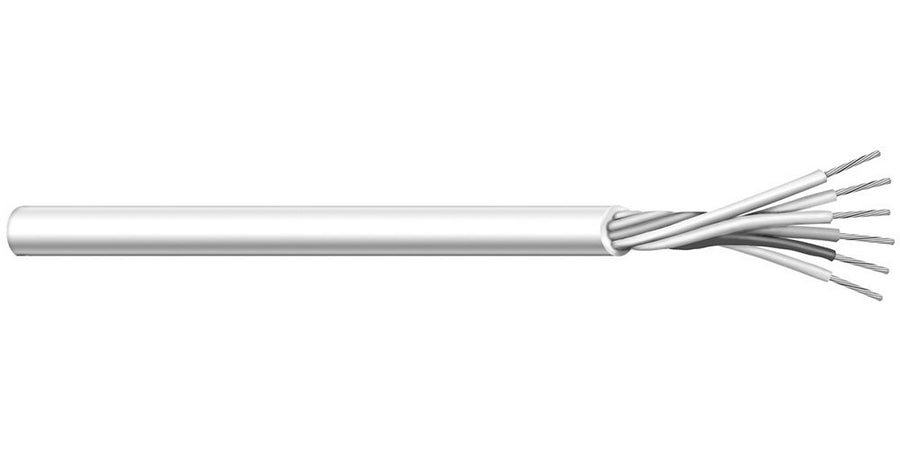

Multi-Conductor Cable, Conductor Size: 22 AWG, Conductor Count: 15 Conductor, Conductor Stranding: 7 x 30 Strand, Conductor Material: Annealed Tinned Copper, Insulation Material: PVC, Insulation Thickness: 0.01 in., Shield Type: Unshielded, Jacket Material: PVC, Jacket Color: Gray, Voltage: 300 V, Special Rating: CSA CMG, NEC, UL, Temperature Rating: -20 to 105 C, Conductor Type: Stranded, Length: 1000 ft., Outside Diameter: 0.303 in., Special Feature: Premium-Grade
Specifications
Specifications
Encore Wire - C4073A.41.10 - Applications
- Supports signal and control wiring in public address systems.
- Works well for intercom wiring when multiple conductors are needed in a single run.
- Fits internal telephone circuits in building and facility communication systems.
- Meets the needs of remote control circuits that require dependable multi-conductor connectivity.
- Handles EIA RS-232 applications requiring signal and control connections.
Encore Wire - C4073A.41.10 - Specifications
| Manufacturer Name | Encore Wire |
|---|---|
| Manufacturer Part Number | C4073A.41.10 |
| Conductor Count | 15 Conductor |
| Item Description | Multi-Conductor Cable, 15 Conductor, 7 x 30 Strand, Annealed Tinned Copper Conductor, PVC Jacket |
| Conductor Material | Tinned Copper |
| Conductor Size | 22 Awg |
| Conductor Stranding | 7 Strands Per Conductor |
| Conductor Type | Stranded |
| Insulation Material | Pvc |
| Insulation Thickness | 0.01 In. (0.25 Mm) |
| Jacket Color | Gray |
| Jacket Material | Pvc |
| Length | 1000 Ft. |
| Outside Diameter | 0.303 In. |
| Product Type | Multi-Conductor Cable |
| Shield Type | Unshielded |
| Special Feature | Premium-Grade |
| Special Rating | Csa Cmg, Nec, Ul |
| Temperature Rating | -20 To 105 C |
| Voltage | 300 V |
