Brand: Encore Wire
|
SKU:
C6047
Encore Wire C6047A.41.10 | Multi-Conductor Cable, 3 Conductor, Tinned Copper, 18 AWG, Fully Annealed Stranded, Polyethylene, Gray
Regular price
$1,447.85
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Encore Wire C6047A.41.10 | Multi-Conductor Cable, 3 Conductor, Tinn...
Regular price
$1,447.85
Unit price
Description
Description

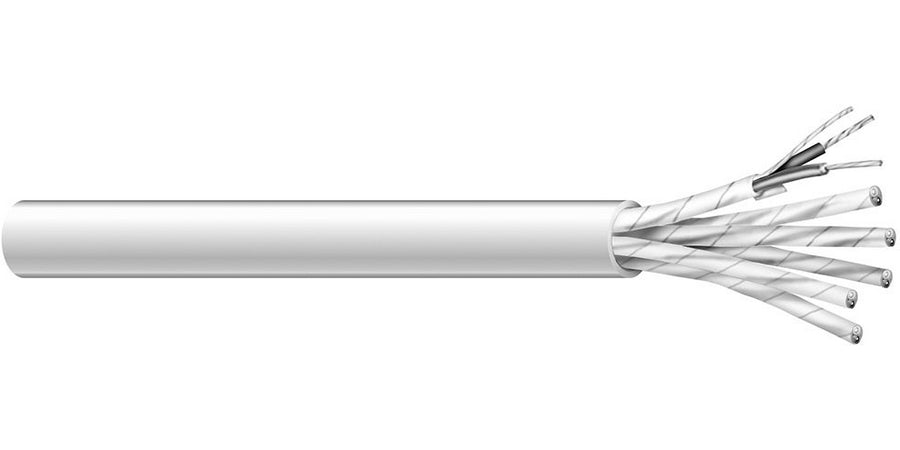

Encore Wire C6047A.41.10 | Multi-Conductor Cable, 3 Conductor, Tinned Copper, 18 AWG, Fully Annealed Stranded, Polyethylene, Gray
General cable manufactures a comprehensive line of computer cables. This complete line of paired and unpaired, shielded computer cables-which are UL and CSA listed-are used primarily for the internal or external interconnection of electronic equipment and computers. Applications include data transmission, cad/cam,telemetering, data displays, computer print-out, credit verification systems and similar applications.
Specifications
Specifications
Encore Wire - C6047A.41.10 - Applications
- Supports signal isolation where separation between circuits is important.
- Used in computers where consistent signal integrity is needed.
- Works in control circuits that require stable signal transmission.
- Performs well in industrial equipment operating in electrically noisy environments.
Encore Wire - C6047A.41.10 - Specifications
| Manufacturer Name | Encore Wire |
|---|---|
| Manufacturer Part Number | C6047A.41.10 |
| Approval Listings | Csa, Rohs, Ul |
| Item Description | Multi-Conductor Cable, 3 Conductor, Tinned Copper, 18 AWG, Fully Annealed Stranded, Polyethylene, Gray |
| Csa | Ft4 Vertical Flame Test - Cables In Cable Trays |
| Conductor Count | 3 Pair |
| Conductor Material | Tinned Copper |
| Conductor Size | 18 Awg |
| Conductor Stranding | 16 Strands Per Conductor |
| Conductor Type | Fully Annealed Stranded |
| Insulation Material | Pe |
| Insulation Thickness | 0.016 In. (0.41 Mm) |
| Jacket Color | Gray |
| Jacket Material | Pvc |
| Jacket Rating | Ul |
| Length | 1000 Ft. |
| Nominal O.D. | 0.395 In. |
| Product Type | Multi-Conductor Cable |
| Shield Material | Aluminized Polyester |
| Shield Type | Foil Shield |
| Shielded | Stp-Shielded Twisted Pair |
| Special Rating | Csa; Rohs; Ul |
| Temperature Rating | 80 Degrees Celsius |
| Voltage | 30 V |
