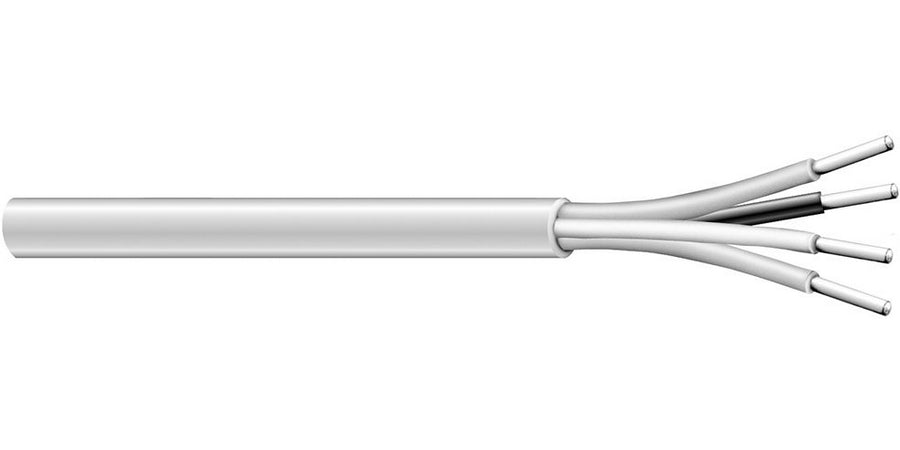

Encore Wire E1004S.41.10 | Fire Alarm Cable, 22 AWG, 4 Conductor, 7 x 30 Strand, Bare Copper Conductor, PVC Insulation
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Encore Wire E1004S.41.10 | Fire Alarm Cable, 22 AWG, 4 Conductor, 7...
Description
Description
Fire Alarm Cable, Conductor Size: 22 AWG, Conductor Count: 4 Conductor, Conductor Stranding: 7 x 30 Strand, Conductor Material: Bare Copper, Insulation Material: PVC, Insulation Thickness: 0.008 in., Shield Type: Unshielded, Outer Jacket Material: PVC, Outer Jacket Color: Gray, Temperature Rating: -20 to 75 C, Fire Rating: Riser, Voltage: 300 V, Special Rating: NEC, UL, Conductor Type: Stranded, Length: 1000 ft., Outside Diameter: 0.141 in.
Specifications
Specifications
Encore Wire - E1004S.41.10 - Applications
- Supports power-limited control circuits used in building systems.
- Provides wiring for intercom systems where clean signal and control wiring is needed.
- Enables wiring for security systems in building installations.
- Handles wiring for audio systems in building environments.
- Serves background music system wiring in building installations.
Encore Wire - E1004S.41.10 - Specifications
| Manufacturer Name | Encore Wire |
|---|---|
| Manufacturer Part Number | E1004S.41.10 |
| Conductor Count | 4 Conductor |
| Item Description | Fire Alarm Cable, 22 AWG, 4 Conductor, 7 x 30 Strand, Bare Copper Conductor, PVC Insulation |
| Conductor Material | Bare Copper |
| Conductor Size | 22 Awg |
| Conductor Stranding | 7 Strands Per Conductor |
| Conductor Type | Stranded |
| Fire Rating | Riser |
| Insulation Material | Pvc |
| Insulation Thickness | 0.008 In. (0.2 Mm) |
| Length | 1000 Ft. |
| Outer Jacket Color | Gray |
| Outer Jacket Material | Pvc |
| Outside Diameter | 0.141 In. |
| Product Type | Fire Alarm Cable |
| Shield Type | Unshielded |
| Special Rating | Nec, Ul |
| Temperature Rating | -20 To 75 C |
| Voltage | 300 V |
