Brand: Encore Wire
|
SKU:
E1504S

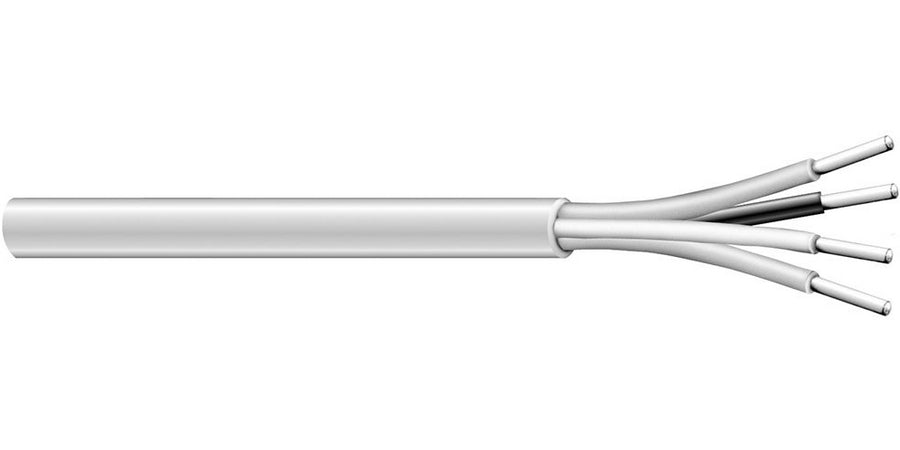

Encore Wire E1504S.30.03 | Fire Alarm Cable, 18 AWG, 4 Conductor, Bare Copper Conductor, PVC Insulation
Regular price
$265.97
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Encore Wire E1504S.30.03 | Fire Alarm Cable, 18 AWG, 4 Conductor, B...
Regular price
$265.97
Unit price
Description
Description
Encore Wire E1504S.30.03 | Fire Alarm Cable, 18 AWG, 4 Conductor, Bare Copper Conductor, PVC Insulation
Fire Alarm Cable, Conductor Size: 18 AWG, Conductor Count: 4 Conductor, Conductor Material: Bare Copper, Insulation Material: PVC, Insulation Thickness: 0.01 in., Shield Type: Unshielded, Outer Jacket Material: PVC, Outer Jacket Color: Red, Temperature Rating: -20 to 75 C, Fire Rating: Non-Plenum, Voltage: 300 V, Special Rating: NEC, UL, Conductor Type: Solid, Length: 1000 ft., Outside Diameter: 0.175 in.
Specifications
Specifications
Encore Wire - E1504S.30.03 - Applications
- Supports wiring for fire alarm and life-safety signaling circuits.
- Used for smoke detectors as part of fire protective circuits.
- Enables voice communications wiring in signaling systems.
- Commonly installed for burglar alarms where signaling circuit wiring is required.
- Designed for fire protective circuits in life-safety signaling applications.
Encore Wire - E1504S.30.03 - Specifications
| Manufacturer Name | Encore Wire |
|---|---|
| Manufacturer Part Number | E1504S.30.03 |
| Conductor Count | 4 Conductor |
| Item Description | Fire Alarm Cable, 18 AWG, 4 Conductor, Bare Copper Conductor, PVC Insulation |
| Conductor Material | Bare Copper |
| Conductor Size | 18 Awg |
| Conductor Type | Solid |
| Fire Rating | Non-Plenum |
| Insulation Material | Pvc |
| Insulation Thickness | 0.01 In. (0.25 Mm) |
| Length | 1000 Ft. |
| Outer Jacket Color | Red |
| Outer Jacket Material | Pvc |
| Outside Diameter | 0.175 In. |
| Product Type | Fire Alarm Cable |
| Shield Type | Unshielded |
| Special Rating | Nec, Ul |
| Temperature Rating | -20 To 75 C |
| Voltage | 300 V |
