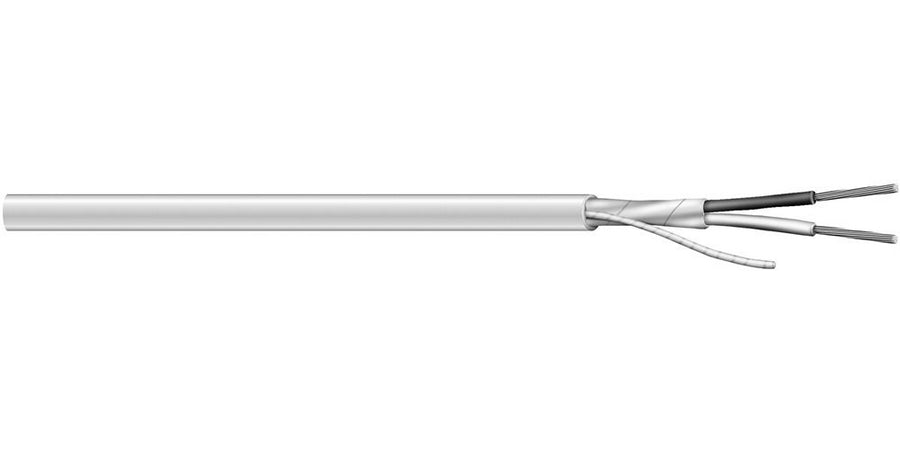

Encore Wire E2042S.30.10 | Fire Alarm Cable, 16 AWG, 2 Conductor, 19 x 0.0117 Strand, Bare Copper Conductor, PVC Insulation
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Encore Wire E2042S.30.10 | Fire Alarm Cable, 16 AWG, 2 Conductor, 1...
Description
Description
Fire Alarm Cable, Conductor Size: 16 AWG, Conductor Count: 2 Conductor, Conductor Stranding: 19 x 0.0117 Strand, Conductor Material: Bare Copper, Insulation Material: PVC, Insulation Thickness: 0.009 in., Shield Type: Foil Shielded, Outer Jacket Material: PVC, Outer Jacket Color: Gray, Temperature Rating: -20 to 75 C, Fire Rating: Riser, Voltage: 300 V, Special Rating: NEC, UL, Conductor Type: Stranded, Length: 1000 ft., Outside Diameter: 0.189 in.
Specifications
Specifications
Encore Wire - E2042S.30.10 - Applications
- Supports power-limited control circuits where shielded signal wiring is needed.
- Commonly used for wiring in intercom systems.
- Suitable for wiring in security systems.
- Often used for wiring in audio systems.
- Applied in background music systems.
Encore Wire - E2042S.30.10 - Specifications
| Manufacturer Name | Encore Wire |
|---|---|
| Manufacturer Part Number | E2042S.30.10 |
| Conductor Count | 2 Conductor |
| Item Description | Fire Alarm Cable, 16 AWG, 2 Conductor, 19 x 0.0117 Strand, Bare Copper Conductor, PVC Insulation |
| Conductor Material | Bare Copper |
| Conductor Size | 16 Awg |
| Conductor Stranding | 19 Strands Per Conductor |
| Conductor Type | Stranded |
| Fire Rating | Riser |
| Insulation Material | Pvc |
| Insulation Thickness | 0.009 In. (0.23 Mm) |
| Length | 1000 Ft. |
| Outer Jacket Color | Gray |
| Outer Jacket Material | Pvc |
| Outside Diameter | 0.189 In. |
| Product Type | Fire Alarm Cable |
| Shield Type | Foil Shield |
| Special Rating | Nec, Ul |
| Temperature Rating | -20° To 75°C (-4° To 167°F) |
| Voltage | 300 V |
