Erico 611380 - GROUNDING - GROUND ROD 1/2" X 8' COPPER
Regular price
$56.58
Unit price
Brand: Erico
|
SKU:
2942
Regular price
$56.58
Unit price
Description
Description

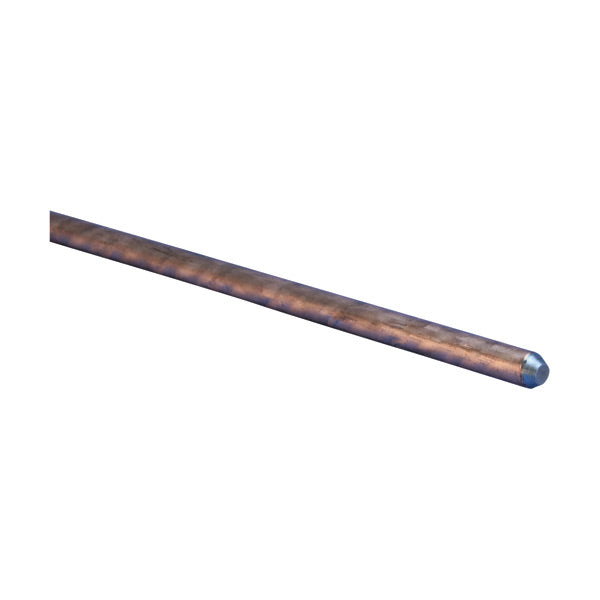

Copper-Bonded Ground Rod, Pointed
Features
- 99.9% pure electrolytic copper coating
- Molecular bond to nickel-sealed high strength steel core
- Rods have a high carbon steel core and tip that provide superior strength when driving
- Copper coating will not crack when bent or tear when driven
- Minimum copper coating of 10 mils on rods listed to UL® 467
- nVent ERICO name, length, diameter and part number is roll-stamped within 12" (304,8 mm) of chamfered end
- UL logo and control number where applicable stamped on each rod for easy inspection after installation
Specifications
Specifications
| Click image to enlarge. |
|---|
Specifications
| Part Number | 611380 |
|---|---|
| Material | Copper-Bonded Steel |
| Tensile Strength | 80,000 psi Min |
| Ground Rod Diameter, Nominal | 1/2" |
| Ground Rod Diameter, Actual (Ø) | 0.505" |
| Length (L) | 8' |
| Plating Thickness | 10 mil |
| Unit Weight | 5.5 lb |
| UPC Label | No |
| Complies With | ANSI®/NEMA® GR1 |
| Certifications | UL |
| Standard Packaging Quantity | 5 pc |
| UPC | 78285630604 |
| EAN-13 | 782856306047 |
Documents and Downloads
Documents and Downloads
- Rail Solutions - Expertly Engineered. Global Capabilities
- Telecommunication Grounding & Bonding Selection Guide
- Wind Power Solutions
- Grounding, Bonding, and nVent ERICO Cadweld Solutions Guide
- Lightning Protection Solutions nVent ERICO System 2000
- UL KDER.E220029
- Complete your grounding system with nVent ERICO
- nVent ERICO Distribution Pole Solutions
- nVent ERICO Small Cell Grounding (5G)
