Erico 613403 - GROUNDING - ROD, GRD, 3/4X10, CU BONDED
Regular price
$122.21
Unit price
Brand: Erico
|
SKU:
9830600
Regular price
$122.21
Unit price
Description
Description

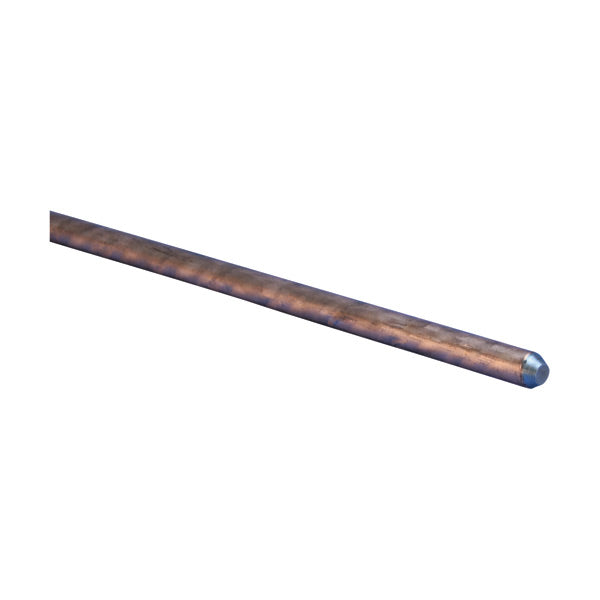

Copper-Bonded Ground Rod, Pointed
Features
- 99.9% pure electrolytic copper coating
- Molecular bond to nickel-sealed high strength steel core
- Rods have a high carbon steel core and tip that provide superior strength when driving
- Copper coating will not crack when bent or tear when driven
- Minimum copper coating of 10 mils on rods listed to UL® 467
- nVent ERICO name, length, diameter and part number is roll-stamped within 12" (304,8 mm) of chamfered end
- UL logo and control number where applicable stamped on each rod for easy inspection after installation
Specifications
Specifications
| Click image to enlarge. |
|---|
Specifications
| Part Number | 613403 |
|---|---|
| Material | Copper-Bonded Steel |
| Tensile Strength | 80,000 psi Min |
| Ground Rod Diameter, Nominal | 3/4" |
| Ground Rod Diameter, Actual (Ø) | 0.681" |
| Length (L) | 10' |
| Plating Thickness | 13 mil |
| Unit Weight | 12.4 lb |
| UPC Label | No |
| Complies With | IEC® EN 62561-2ANSI®/NEMA® GR1 |
| Certifications | cULus |
| Standard Packaging Quantity | 5 pc |
| UPC | 78285660988 |
| EAN-13 | 782856609889 |
