Brand: Erico | SKU: 9826980

Erico 614400 - GROUNDING - ROD, GRD, 1X10, CU BONDED

Name: Erico 614400 - GROUNDING - ROD, GRD, 1X10, CU BONDED
Brand: Erico
SKU: 9826980
Price: 510.84 USD
Availability: InStock

$510.84

Shipping calculated at checkout.

Description

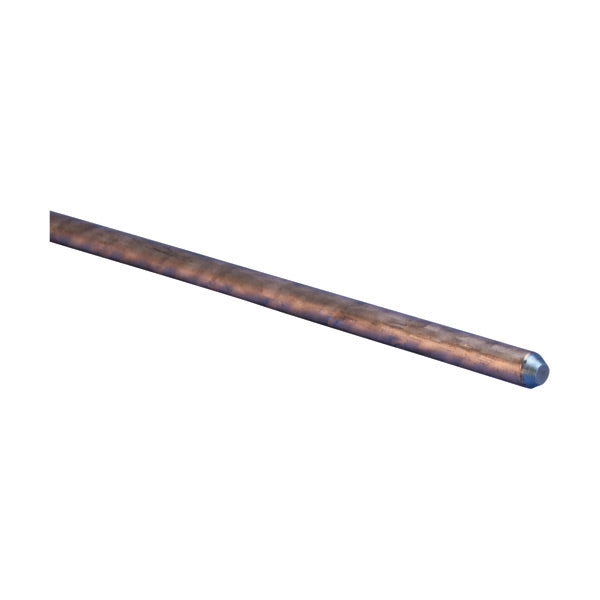

Copper-Bonded Ground Rod, Pointed

99.9% pure electrolytic copper coating
Molecular bond to nickel-sealed high strength steel core
Rods have a high carbon steel core and tip that provide superior strength when driving
Copper coating will not crack when bent or tear when driven
Minimum copper coating of 10 mils on rods listed to UL® 467
nVent ERICO name, length, diameter and part number is roll-stamped within 12" (304,8 mm) of chamfered end
UL logo and control number where applicable stamped on each rod for easy inspection after installation

Click image to enlarge.

Part Number	614400
Material	Copper-Bonded Steel
Tensile Strength	80,000 psi Min
Ground Rod Diameter, Nominal	1"
Ground Rod Diameter, Actual (Ø)	0.911"
Length (L)	10'
Plating Thickness	10 mil
Unit Weight	22 lb
UPC Label	No
Complies With	ANSI®/NEMA® GR1
Certifications	CSA 46866cULus
Standard Packaging Quantity	3 pc
UPC	78285630621
EAN-13	8711893154979
