Erico 633470 - GROUNDING - ROD, GRD, 3/4X7, SEC, CU
Regular price
$87.33
Unit price
Brand: Erico
|
SKU:
9832660
Regular price
$87.33
Unit price
Description
Description

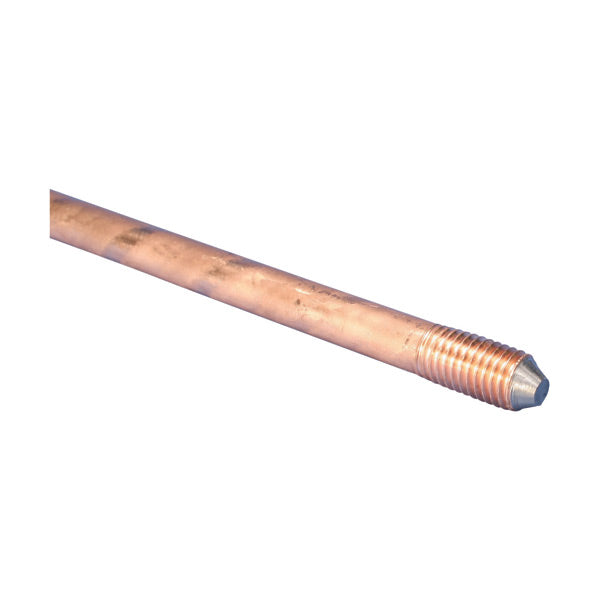

Copper-Bonded Ground Rod, Threaded
Features
- Cold-rolled threads with continuous, unbroken grain flows preserve copper coating and are stronger than cut threads
- 99.9% pure electrolytic copper coating
- Molecular bond to nickel-sealed high strength steel core
- Rods have a high carbon steel core and tip that provide superior strength when driving
- Copper coating will not crack when bent or tear when driven
- Minimum copper coating of 10 mils on rods listed to UL® 467
- nVent ERICO name, length, diameter and part number is roll-stamped within 12" (304,8 mm) of chamfered end
- UL logo and control number where applicable stamped on each rod for easy inspection after installation
Specifications
Specifications
| Click image to enlarge. |
|---|
Specifications
| Part Number | 633470 |
|---|---|
| Material | Copper-Bonded Steel |
| Tensile Strength | 80,000 psi Min |
| Thread Location | Pointed and Chamfered Ends |
| Ground Rod Diameter, Nominal | 3/4" |
| Ground Rod Diameter, Actual (Ø) | 0.68" |
| Thread Size (TS) | 3/4 UNC |
| Length (L) | 7' |
| Plating Thickness | 10 mil |
| Unit Weight | 8.5 lb |
| Complies With | IEC® EN 62561-2 |
| Certifications | BBJ Z/12/046/16 (Poland) |
| Standard Packaging Quantity | 5 pc |
| UPC | 78285688188 |
| EAN-13 | 782856881889 |
