Brand: Erico | SKU: 9832661

Erico 633480 - GROUNDING - ROD, GRD, 3/4X8, SEC, CU

Name: Erico 633480 - GROUNDING - ROD, GRD, 3/4X8, SEC, CU
Brand: Anixter
SKU: 9832661
Price: 99.38 USD
Availability: InStock

$99.38

Shipping calculated at checkout.

Description

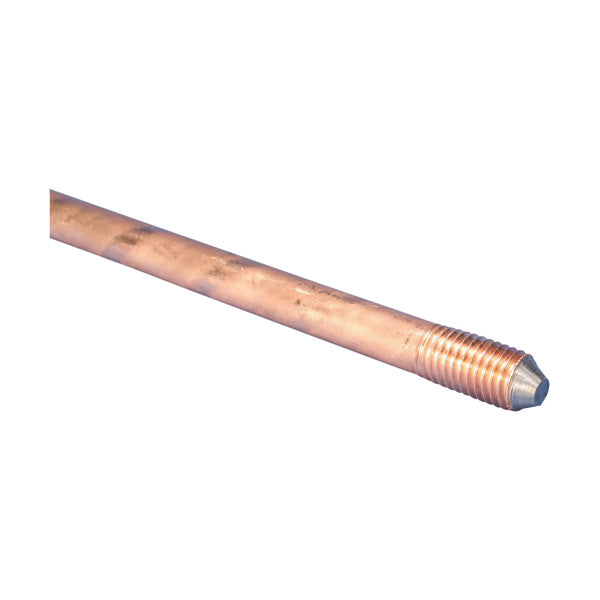

Copper-Bonded Ground Rod, Threaded

Cold-rolled threads with continuous, unbroken grain flows preserve copper coating and are stronger than cut threads
99.9% pure electrolytic copper coating
Molecular bond to nickel-sealed high strength steel core
Rods have a high carbon steel core and tip that provide superior strength when driving
Copper coating will not crack when bent or tear when driven
Minimum copper coating of 10 mils on rods listed to UL® 467
nVent ERICO name, length, diameter and part number is roll-stamped within 12" (304,8 mm) of chamfered end
UL logo and control number where applicable stamped on each rod for easy inspection after installation

Click image to enlarge.

Part Number	633480
Material	Copper-Bonded Steel
Tensile Strength	80,000 psi Min
Thread Location	Pointed and Chamfered Ends
Ground Rod Diameter, Nominal	3/4"
Ground Rod Diameter, Actual (Ø)	0.68"
Thread Size (TS)	3/4 UNC
Length (L)	8'
Plating Thickness	10 mil
Unit Weight	9.6 lb
Complies With	ANSI®/NEMA® GR1IEC® EN 62561-2
Certifications	BBJ Z/12/046/16 (Poland)RUSUL
Standard Packaging Quantity	5 pc
UPC	78285630638
EAN-13	8711893106497
