Erico A239FD2S242G4LH - GROUNDING - CLAMP, FENCE, 4/0 FLEX, 4/0
Regular price
$566.58
Unit price
Brand: Erico
|
SKU:
9830120
Regular price
$566.58
Unit price
Description
Description

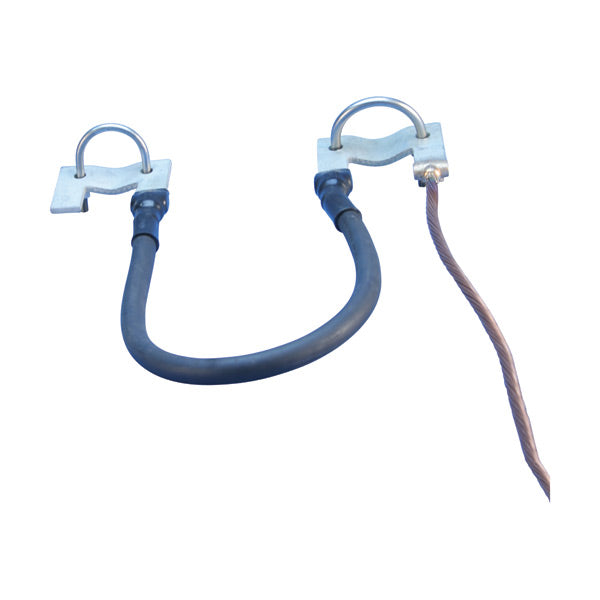

Prefabricated Gate Jumper Assembly with Ground Leads
Features
- Ideal for when nVent ERICO Cadweld connections cannot be made to aluminum pipe or thin-wall steel tube
- Jumper conductor is insulated
- Stainless steel hardware included
- Available in either left or right-hand orientation
Specifications
Specifications
| Click image to enlarge. |
|---|
Specifications
| Part Number | A239FD2S242G4LH |
|---|---|
| Material | Copper, Stainless Steel 18-8 (EN 1.4305), Stainless Steel 304 (EN 1.4301) |
| Finish | Tinned |
| Orientation | Left Hand |
| Fixed Gate Diameter, Nominal | 3" |
| Fixed Gate Diameter, Actual (Ø1) | 3.5" |
| Post Frame Diameter, Nominal | 2" |
| Post Frame Diameter, Actual (Ø2) | 2.4" |
| Jumper Conductor Size | 4/0 Stranded |
| Jumper Length | 24" |
| Ground Lead Conductor Size | 2/0 Stranded |
| Ground Lead Length | 4' |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285664099 |
