Erico B101EG - GROUNDING - CADWELD 1 HOLE LUG, NEMA, 2.5"
Regular price
$31.98
Unit price
Brand: Erico
|
SKU:
9840364
Regular price
$31.98
Unit price
Description
Description

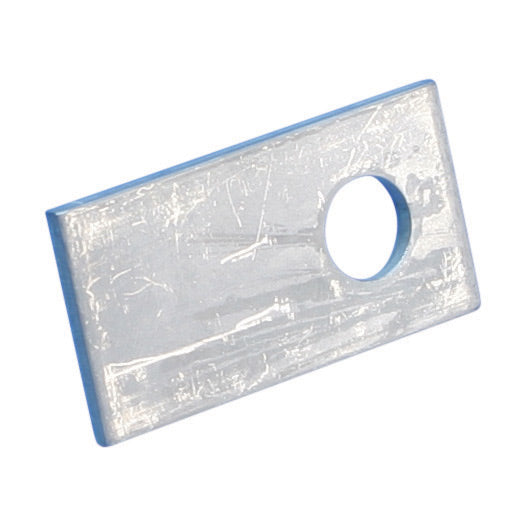

Erico B101EG - GROUNDING - CADWELD 1 HOLE LUG, NEMA, 2.5"
Features
- Provides an efficient bolting surface for grounding and power applications
- Electrolytic grade copper
- For use with nVent ERICO Cadweld type LA connections only
Specifications
Specifications
Image 1
| Click image to enlarge. |
|---|
Image 2
| Click image to enlarge. |
|---|
Specifications
| Part Number | B101EG |
|---|---|
| Material | Copper |
| Finish | Tinned |
| Type | NEMA® |
| Length (L) | 2.5" |
| Width (W) | 1.5" |
| Thickness (T) | 0.25" |
| A | 0.75" |
| Hole Size (HS) | 0.688" |
| Equivalent Conductor Size | 477 kcmil |
| Standard Packaging Quantity | 10 pc |
| UPC | 78285632125 |
