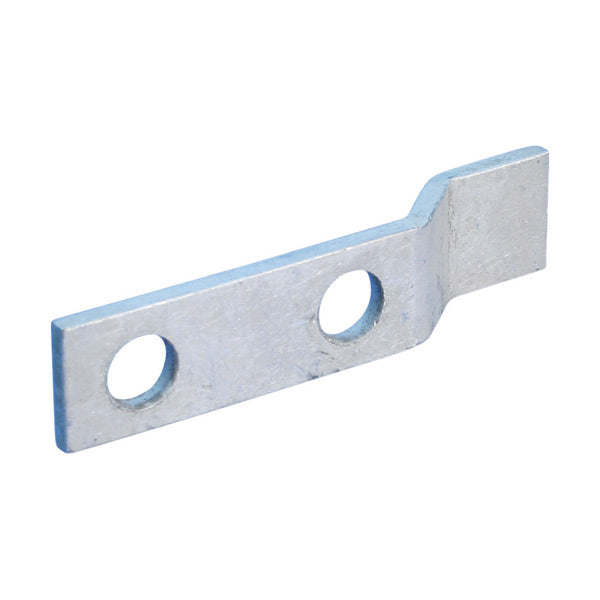

Erico B102EFOL - GROUNDING - CADWELD LUG, CU, 1/4 X 1 1/4
Regular price
$45.51
Unit price
Brand: Erico
|
SKU:
9836905
Regular price
$45.51
Unit price
Description
Description
Erico B102EFOL - GROUNDING - CADWELD LUG, CU, 1/4 X 1 1/4
Features
- Provides an efficient bolting surface for grounding and power applications
- Electrolytic grade copper
- For use with nVent ERICO Cadweld type LA connections only
Specifications
Specifications
Image 1
| Click image to enlarge. |
|---|
Image 2
| Click image to enlarge. |
|---|
Specifications
| Part Number | B102EFOL |
|---|---|
| Material | Copper |
| Finish | Tinned |
| Type | NEMA® |
| Height (H) | 0.75" |
| Length (L) | 4.75" |
| Width (W) | 1.25" |
| Thickness (T) | 0.25" |
| A | 0.625" |
| B | 1.75" |
| C | 3" |
| D | 1.06" |
| Hole Size (HS) | 0.563" |
| Angle (a) | 45° |
| Equivalent Conductor Size | 398 kcmil |
| Standard Packaging Quantity | 10 pc |
| UPC | 78285663023 |
