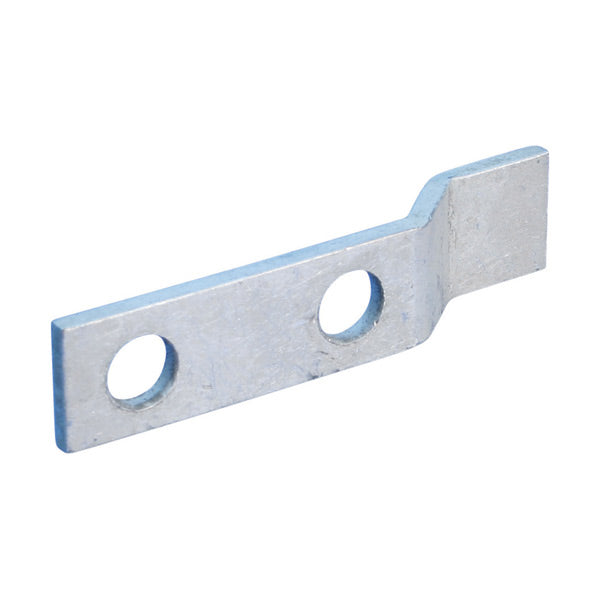

Erico B102GGOL - GROUNDING - CADWELD 2 HOLE OFFSET LUG
Regular price
$110.70
Unit price
Brand: Erico
|
SKU:
9840401
Regular price
$110.70
Unit price
Description
Description
Erico B102GGOL - GROUNDING - CADWELD 2 HOLE OFFSET LUG
Features
- Provides an efficient bolting surface for grounding and power applications
- Electrolytic grade copper
- For use with nVent ERICO Cadweld type LA connections only
Specifications
Specifications
Image 1
| Click image to enlarge. |
|---|
Image 2
| Click image to enlarge. |
|---|
Specifications
| Part Number | B102GGOL |
|---|---|
| Material | Copper |
| Finish | Tinned |
| Type | NEMA® |
| Height (H) | 1.25" |
| Length (L) | 5.875" |
| Width (W) | 1.5" |
| Thickness (T) | 0.375" |
| A | 0.625" |
| B | 1.75" |
| C | 3.25" |
| D | 1.5" |
| Hole Size (HS) | 0.563" |
| Angle (a) | 45° |
| Equivalent Conductor Size | 716 kcmil |
| Standard Packaging Quantity | 5 pc |
| UPC | 78285632146 |
