Erico B103CEOL003 - GROUNDING - CADWELD 2 HOLE OFFSET LUG
Regular price
$33.21
Unit price
Brand: Erico
|
SKU:
9840407
Regular price
$33.21
Unit price
Description
Description

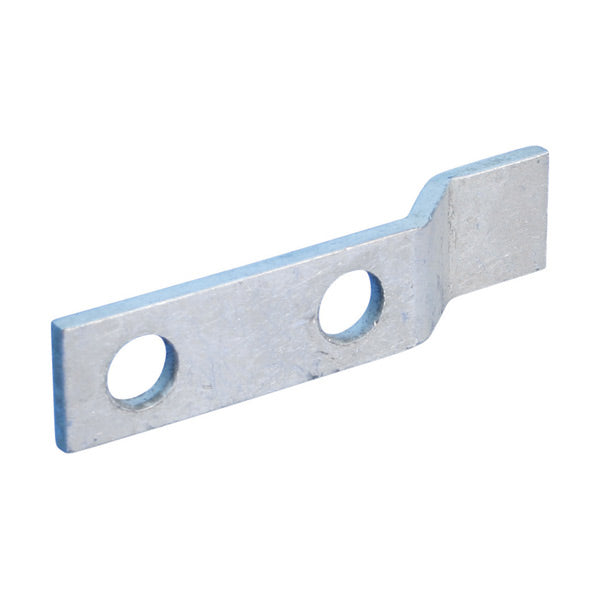

Erico B103CEOL003 - GROUNDING - CADWELD 2 HOLE OFFSET LUG
Features
- Provides an efficient bolting surface for grounding and power applications
- Electrolytic grade copper
- For use with nVent ERICO Cadweld type LA connections only
Specifications
Specifications
Image 1
| Click image to enlarge. |
|---|
Image 2
| Click image to enlarge. |
|---|
Specifications
| Part Number | B103CEOL003 |
|---|---|
| Material | Copper |
| Finish | Tinned |
| Type | Non-NEMA® |
| Height (H) | 0.63" |
| Length (L) | 3.43" |
| Width (W) | 1" |
| Thickness (T) | 0.125" |
| A | 0.438" |
| B | 1" |
| C | 1.93" |
| D | 0.875" |
| Hole Size (HS) | 0.438" |
| Angle (a) | 45° |
| Equivalent Conductor Size | 159 kcmil |
| Standard Packaging Quantity | 10 pc |
| UPC | 78285675953 |
