Brand: Erico
|
SKU:
9837025

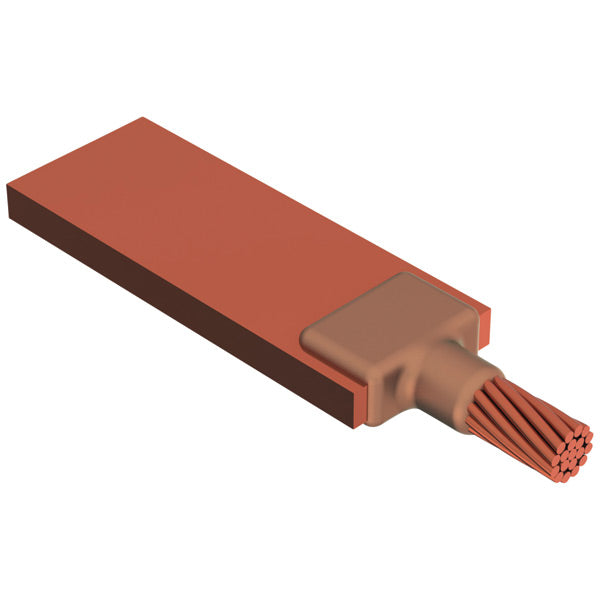

Erico CALAT1HAA - GROUNDING - CADWELD MOLD, CABLE TO
Regular price
$291.61
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Erico CALAT1HAA - GROUNDING - CADWELD MOLD, CABLE TO
Regular price
$291.61
Unit price
Description
Description
nVent ERICO Cadweld Cathodic Connections are the preferred method of exothermically welding cathodic protection anode leads to pipes (steel or cast iron), tanks, and other structures. Cathodic protection systems are designed to prevent galvanic corrosion along a pipeline or in various structures. nVent ERICO Cadweld Cathodic Connections use a special welding material alloy to minimize heat effect on the steel, which is especially important on thin wall and high stress pipes.
Features
- Forms a permanent, low resistance connection
- Provides a molecular bond
- nVent ERICO Cadweld Exothermic Connections are rated with the same current capacity as the conductor
- Portable installation equipment with no external source of power required
- Installers can be easily trained to make nVent ERICO Cadweld Exothermic Connections
- Connections can be visually inspected
- Mold Families LA and LE can be used with straight or offset lugs
Specifications
Specifications
| Click image to enlarge. |
|---|
Specifications
| Part Number | CALAT1HAA |
|---|---|
| Mold Family | LA |
| Lug/Busbar Size | 1/16" x 1/2" |
| Conductor Size | #6 Concentric |
| Conductor Outer Diameter, Nominal | 0.184" |
| Split Crucible | No |
| Wear Plates | No |
| Mold Only | No |
| Welding Material | CA25 or CA25PLUSF33, Sold Separately |
| Handle Clamp | Mini EZ Attached |
| Conductor Sleeve | CAB112, Sold Separately |
| Price Key | T |
| Ease of Use | Preferred |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285638167 |
| EAN-13 | 782856381679 |
Documents and Downloads
Documents and Downloads
- nVent ERICO Cadweld Welded Electrical Connections
- nVent ERICO Cadweld Permanent Grounding Connections meet the requirements of IEEE STD. 837-2014
- nVent ERICO Distribution Pole Solutions
- Your Trusted Source for Grounding & Bonding
- Cable to Lug Horizontal Splice
- Cable to Lug Horizontal Splice
- IP6548 Cable to Lug Horizontal Tap Perpendicular to Flange, Instruction Sheet IP6548_C
