Brand: Erico
|
SKU:
9833509

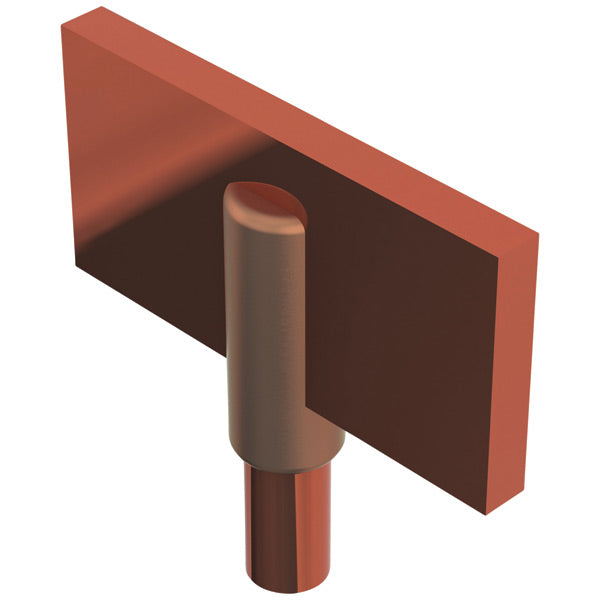

Erico CMC16PAJ - GROUNDING - CADWELD MOLD, BUS TO GRD
Regular price
$300.08
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Erico CMC16PAJ - GROUNDING - CADWELD MOLD, BUS TO GRD
Regular price
$300.08
Unit price
Description
Description
nVent ERICO Cadweld graphite molds are designed and engineered for thousands of connection styles and conductor combinations.
Features
- Forms a permanent, low resistance connection
- Provides a molecular bond
- nVent ERICO Cadweld Exothermic Connections are rated with the same current capacity as the conductor
- Portable installation equipment with no external source of power required
- Installers can be easily trained to make nVent ERICO Cadweld Exothermic Connections
- Connections can be visually inspected
- Mold Families LA and LE can be used with straight or offset lugs
Specifications
Specifications
| Click image to enlarge. |
|---|
Specifications
| Part Number | CMC16PAJ |
|---|---|
| Mold Family | CM |
| Ground Rod Type | Copper-bonded |
| Ground Rod Diameter, Nominal | 5/8" |
| Ground Rod Diameter, Actual | 0.563" |
| Lug/Busbar Size | 6 mm x 25 mm |
| Split Crucible | No |
| Wear Plates | No |
| Mold Only | No |
| Welding Material | 150 or 150PLUSF20, Sold Separately |
| Handle Clamp | L160 and B399P, Sold Separately |
| Frame | Not Required |
| Price Key | C |
| Ease of Use | Difficult |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285688333 |
| EAN-13 | 8711893141252 |
