Brand: Erico
|
SKU:
9831902

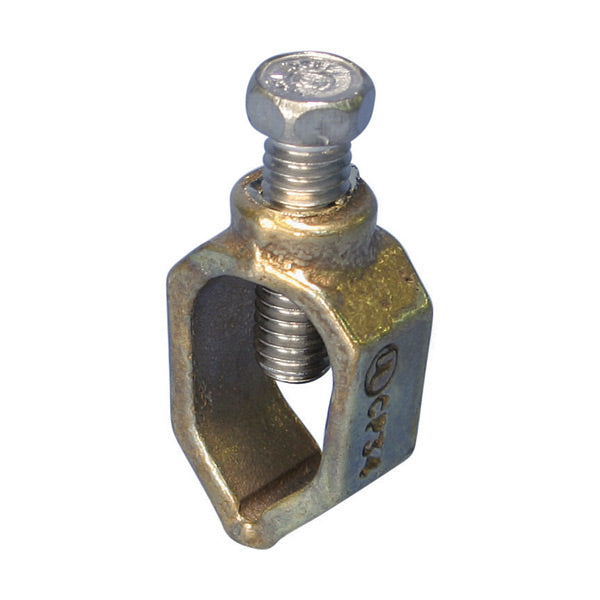

Erico CP34 - GROUNDING - Universal Ground Rod Clamp, Rod to Conductor, Bronze
Regular price
$8.10
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
The nVent ERICO Universal acorn clamp line-up is a cost-effective and reliable way to connect ground rods to conductors throughout your grounding and bonding system. Suitable for both above ground and below grade installation, the clamp tightens the components together with tools that are available on every jobsite. Now available in the most commonly requested universal size, you can carry less with you on the job and get more done. When you're choosing your preferred connection method, make sure to reach out to our team with any technical questions or engineering needs.
Features
- For use with copper-bonded ground rods
- Parts that are UL 467 Listed are suitable for direct burial in earth or concrete
Specifications
Specifications
| Click image to enlarge. |
|---|
Specifications
| Part Number | CP34 |
|---|---|
| Material | Silicon Bronze |
| Ground Rod Diameter, Nominal | 1/2" – 3/4" |
| Ground Rod Diameter, Actual (Ø) | 0.50" – 0.68" |
| Conductor Size | #10 Solid - 1/0 Stranded, 6 mm² Solid - 50 mm² Stranded |
| Rebar Size, Canada | 10M |
| Rebar Size, Metric | 12 mm |
| Rebar Size, US | #4 |
| Wrench Size | 1/2" |
| Complies With | IEC EN 62561-1 |
| Torque (TQ) | 150 in lb |
| Certifications | CSA 46866cULus |
| Standard Packaging Quantity | 50 pc |
| UPC | 78285630704 |
| EAN-13 | 8711893041682 |
Documents and Downloads
Documents and Downloads
- Bonding, Grounding and Surge Protection Products and Low Voltage Panel Components
- nVent ERICO Electric Utility Application and Reference Guide
- nVent ERICO Maximizing Your Grounding System
- Rail Solutions - Expertly Engineered. Global Capabilities
- Telecommunication Grounding & Bonding Selection Guide
- Grounding, Bonding, and nVent ERICO Cadweld Solutions Guide
- CSA 46866
- cUL KDER7.E220029
- UL KDER.E220029
