Erico CSP1F90 - GROUNDING - COAXIAL SURGE PROTECTOR
Regular price
$197.23
Unit price
Brand: Erico
|
SKU:
9828183
Regular price
$197.23
Unit price
Description
Description

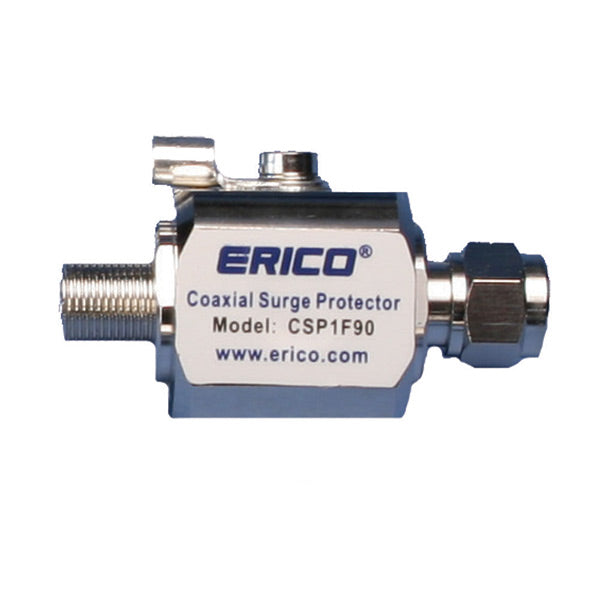

Erico CSP1F90 - GROUNDING - COAXIAL SURGE PROTECTOR
Features
- Simple plug-in installation
- Supplied with mounting bracket and flying lead ground
- Low insertion and return loss
- Wide operating frequency spectrum
Specifications
Specifications
Image 1
| Click image to enlarge. |
|---|
Image 2
| Click image to enlarge. |
|---|
Image 3
| Click image to enlarge. |
|---|
Specifications
| Part Number | CSP1F90 |
|---|---|
| Max Discharge Current (Imax), Per Mode | 20 kA 8/20 ?s |
| Frequency | 0 – 3 GHz |
| Capacitance | 1.5 pF |
| Insulation Resistance | 10 G? |
| Impulse Life | 400 @ 500 A 10/1000 ?s |
| Enclosure Material | Metal |
| Enclosure Rating | IP 20NEMA®-1 |
| Temperature | -40 to 194 °F |
| Connection Type | F-Type, Male/Female |
| Spark-Over Voltage @ 100 V/?s | 450 V |
| Spark-Over Voltage @ 100 V/s | 72 – 108 V |
| Depth (D) | 1" |
| Height (H) | 0.984" |
| Width (W) | 0.984" |
| Unit Weight | 0.294 lb |
| Certifications | CEUL |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285669070 |
| EAN-13 | 8711893121445 |
Documents and Downloads
Documents and Downloads
- Rail Solutions - Expertly Engineered. Global Capabilities
- Rail Surge Protection Guide
- Surge Protection Solutions
- UL QVLA.E355701
- Rail Surge Protection
- Technical Note TN CR 001, Why Install Surge Protection
- Technical Note TN CR 002, The need for co-ordinated protection
- Technical Note TN CR 003, Where to install SPD's for AC powered electronic equipment
- Technical Note TN CR 006, SPDs and the Benefits of Filtering
