Brand: Erico
|
SKU:
9826854

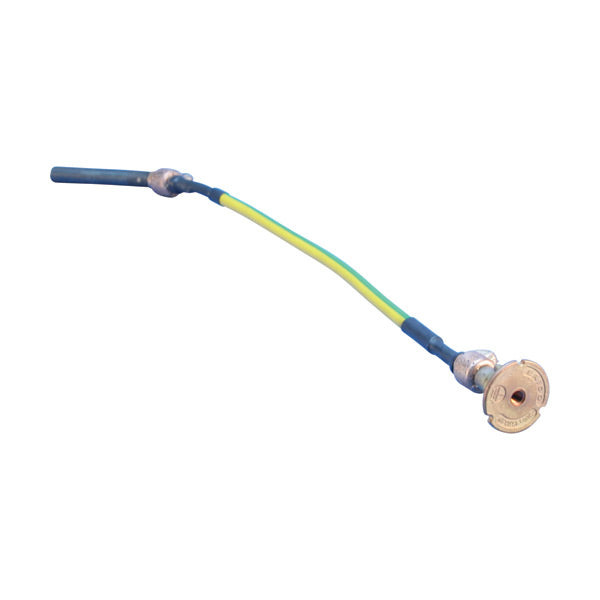

Erico DB12CS701 - GROUNDING - EARTHBRIDGE DB, ONESTUD
Regular price
$278.64
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Erico DB12CS701 - GROUNDING - EARTHBRIDGE DB, ONESTUD
Regular price
$278.64
Unit price
Description
Description
Earthbridges are assemblies made from a high-quality conductive earthpoint (connecting terminal) and various types of conductors. The nVent ERICO Cadweld exothermic connection process is used to combine them together, forming a highly corrosion resistant and long-lasting assembly.
Features
- Long-lasting design
- Low ground resistance and impedance
- Superior electrical conductivity and resistance to corrosion
- Electrically and mechanically robust and reliable
- Easy to install
Specifications
Specifications
Image 1
| Click image to enlarge. |
|---|
Image 2
| Click image to enlarge. |
|---|
Specifications
| Part Number | DB12CS701 |
|---|---|
| Material | Copper, Steel |
| Earthpoint Type | DB, One Stud |
| Conductor Type | Yellow-Green Insulated Cable to Solid Round Steel, 10° Angle |
| Conductor Size | 70 mm² Stranded |
| Length 1 (L1) | 39.37" |
| Length 2 (L2) | 8.66" |
| Diameter 1 (Ø1) | 1.97" |
| Diameter 2 (Ø2) | 0.47" |
| Thread Size (TS) | M12 |
| Angle (a) | 10° |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285688363 |
| EAN-13 | 3479770003820 |
