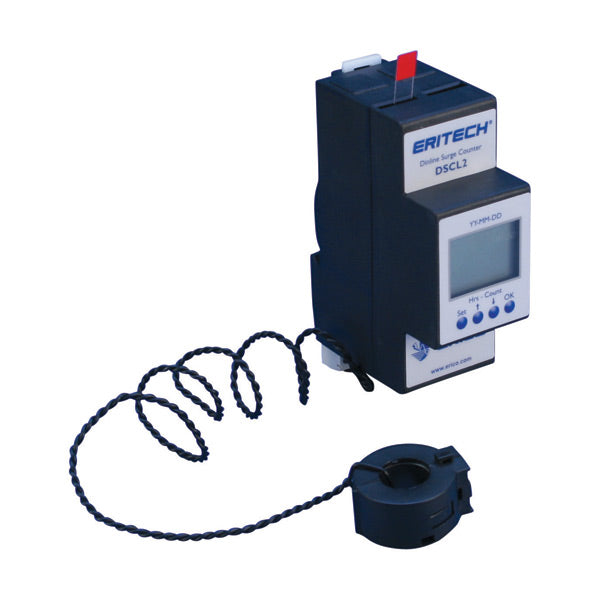

Erico DSCL2 - GROUNDING - Surge Counter, Digital Display
Features
- Records time and date of transient surge events
- Resettable counter
- Snap on, hall effect transducer
Specifications
Specifications
| Click image to enlarge. |
|---|
Specifications
| Part Number | DSCL2 |
|---|---|
| Trip Threshold | 100 A 8/20 ?s |
| Status Indication | LCD |
| Connection, Stranded | 2/0 Max |
| Lead Length | 20" |
| Enclosure Material | UL® 94V-0 Thermoplastic |
| Enclosure Rating | IP 20NEMA®-1 |
| Mounting | 35 mm top hat DIN rail |
| Temperature | -4 to 158 °F |
| Module Width | 2 M |
| Depth (D) | 2.68" |
| Height (H) | 3.54" |
| Width (W) | 1.42" |
| Unit Weight | 0.42 lb |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285680444 |
| EAN-13 | 8711893146950 |
Documents and Downloads
Documents and Downloads
- Rail Solutions - Expertly Engineered. Global Capabilities
- Surge Protection Solutions
- Digital Surge Counter DSCL2
- DSCL2 Surge Counter
- Technical Note TN CR 001, Why Install Surge Protection
- Technical Note TN CR 002, The need for co-ordinated protection
- Technical Note TN CR 003, Where to install SPD's for AC powered electronic equipment
- Technical Note TN CR 006, SPDs and the Benefits of Filtering
- Technical Note TN CR 007, - What are clamping voltages, suppressed voltage ratings and let-throughs
