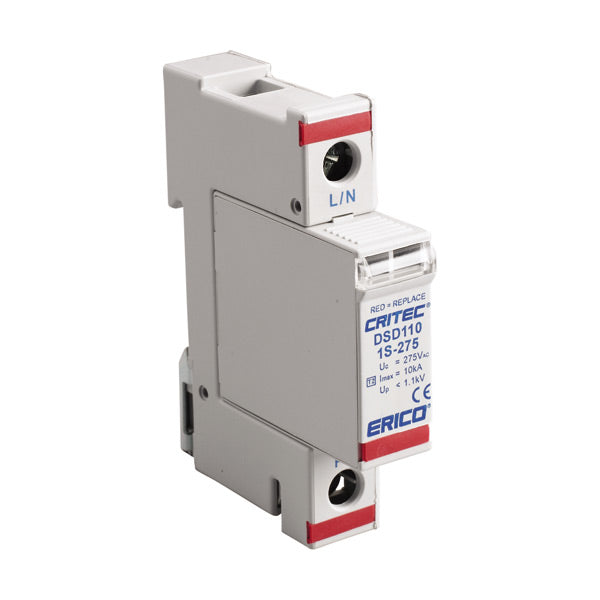

Erico DSD1101S275 - GROUNDING - DIVERTER, SURGE, 275V, 10KA
Regular price
$100.86
Unit price
Brand: Erico
|
SKU:
9830217
Regular price
$100.86
Unit price
Description
Description
Erico DSD1101S275 - GROUNDING - DIVERTER, SURGE, 275V, 10KA
Features
- 10kA 8/20?s maximum surge rating provides protection suitable for small sub-distribution panels or point-of-use applications
- Indication flag provides clear visual indication of life status
Specifications
Specifications
Image 1
| Click image to enlarge. |
|---|
Image 2
| Click image to enlarge. |
|---|
Specifications
| Part Number | DSD1101S275 |
|---|---|
| Nominal System Voltage (Un) | 220 - 240 V |
| Max Continuous Operating Voltage (Uc) | 275 VAC, 350 VDC |
| Nominal Discharge Current (In) | 5 kA 8/20 ?s |
| Max Discharge Current (Imax) | 10 kA 8/20 ?s |
| Voltage Protection Level (Up) | 1,200 V @ 5 kA, 930 V @ 3 kA |
| Distribution System | TN-CTN-C-STN-S |
| Frequency | 0 – 60 Hz |
| Protection Modes | Single |
| Short Circuit Current Rating (SCCR) | 10 kA |
| Technology | MOV with thermal disconnect |
| Connection, Solid | #2 Max |
| Connection, Stranded | #4 Max |
| Mounting | 35 mm top hat DIN rail |
| Enclosure Material | UL® 94V-0 Thermoplastic |
| Enclosure Rating | IP 20NEMA®-1 |
| Remote Contacts | No |
| Status Indication | Mechanical flag |
| Terminal Torque | 31 in lb Max |
| Temperature | -40 to 176 °F |
| Module Width | 1 M |
| Depth (D) | 3" |
| Height (H) | 3.54" |
| Width (W) | 0.71" |
| Unit Weight | 0.3 lb |
| Complies With | IEC® 61643-1 Class III; ANSI®/IEEE® C62.41.2-2002 Cat A, Cat B |
| Replacement Module | DSD110M275 |
| Certifications | CE |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285647025 |
| EAN-13 | 8711893013955 |
