Brand: Erico
|
SKU:
9832014

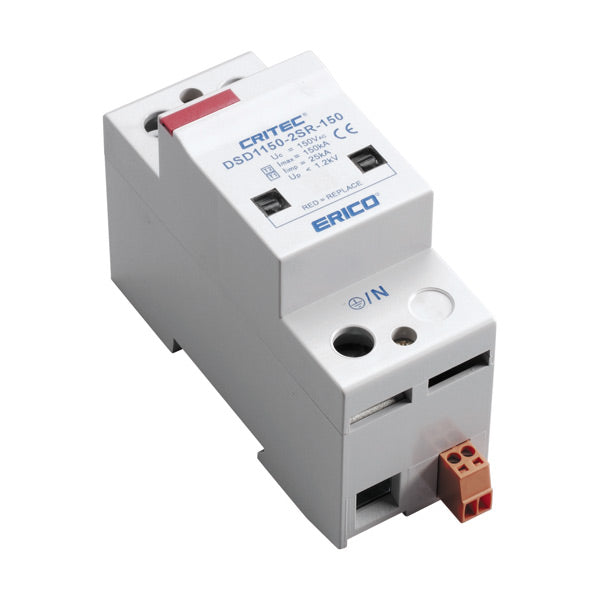

Erico DSD11502SR150 - GROUNDING - Surge Diverter, 150 kA Single Mode
Regular price
$309.30
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Erico DSD11502SR150 - GROUNDING - Surge Diverter, 150 kA Single Mode
Regular price
$309.30
Unit price
Description
Description
Surge Diverter, 150 kA Single Mode
Features
- 150kA 8/20?s surge rating provides protection suitable for main distribution panels and provides a long operational life
- Indication flag provides clear visual indication of life status
- Remote contacts provide remote status monitoring
- Simple combinations of the DSD and SGD series allow the protection of TT, TNC, TNC-S and IT systems
Specifications
Specifications
Image 1
| Click image to enlarge. |
|---|
Image 2
| Click image to enlarge. |
|---|
Specifications
| Part Number | DSD11502SR150 |
|---|---|
| Nominal System Voltage (Un) | 110 - 120 V |
| Max Continuous Operating Voltage (Uc) | 150 VAC, 200 VDC |
| Nominal Discharge Current (In) | 60 kA 8/20 ?s |
| Max Discharge Current (Imax) | 150 kA 8/20 ?s |
| Voltage Protection Level (Up) | 480 V @ 3 kA, 1,200 V @ 60 kA |
| Impulse Current (Iimp) | 25 kA 10/350 ?s |
| Frequency | 0 – 60 Hz |
| Protection Modes | Single |
| Technology | MOV with thermal disconnect |
| Connection, Solid | #2 Max |
| Connection, Stranded | #4 Max |
| Mounting | 35 mm top hat DIN rail |
| Enclosure Material | UL® 94V-0 Thermoplastic |
| Enclosure Rating | IP 20NEMA®-1 |
| Status Indication | Mechanical flag |
| Terminal Torque | 31 in lb Max |
| Remote Contacts | Yes |
| Temperature | -40 to 176 °F |
| Module Width | 2 M |
| Depth (D) | 2.68" |
| Height (H) | 3.54" |
| Width (W) | 1.42" |
| Unit Weight | 0.73 lb |
| Complies With | ANSI®/IEEE® C62.41.2-2002 Cat A, Cat B, Cat C; ANSI®/IEEE® C62.41.2-2002 Scenario II, Exposure 3, 100 kA 8/20 ?s, 10 kA 10/350 ?sIEC® 61643-1 Class I, Class II |
| Certifications | CE |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285647027 |
| EAN-13 | 8711893013795 |
