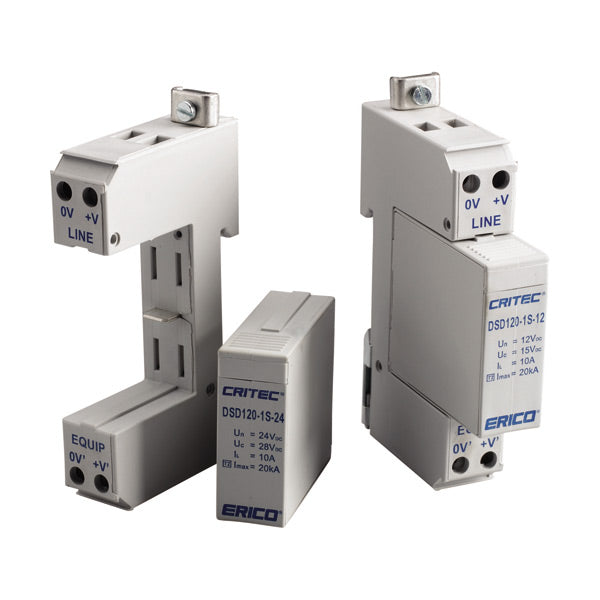

Surge Diverter, 20 kA Single Mode DC
Features
- General purpose barrier protection of 12 or 24 VDC systems and equipment
- Large surge rating to 20 kA 8/20?s suitable for exposed DC wiring
- Two stage protection suitable for the protection of power supply feeds
- High series current rating of 10 A
Specifications
Specifications
Image 1
| Click image to enlarge. |
|---|
Image 2
| Click image to enlarge. |
|---|
Specifications
| Part Number | DSD1201S24 |
|---|---|
| Nominal System Voltage (Un) | 24 VDC |
| Max Continuous Operating Voltage (Uc) | 28 VDC |
| Nominal Discharge Current (In) | 10 kA 8/20 ?s |
| Max Discharge Current (Imax) | 20 kA 8/20 ?s |
| Voltage Protection Level (Up), L-L | 40 V @ 3 kA |
| Rated Load Current (IL) | 10 A |
| Protection Modes | Common, Differential |
| Technology | Gas Discharge Tube (GDT)Silicon Avalanche Diode (SAD) |
| Connection, Solid | #10 Max |
| Connection, Stranded | #10 Max |
| Loop Resistance | 0.5 ? |
| Mounting | 35 mm top hat DIN rail |
| Enclosure Material | UL® 94V-0 Thermoplastic |
| Enclosure Rating | IP 20NEMA®-1 |
| Remote Contacts | No |
| Terminal Torque | 22 in lb Max |
| Temperature | -40 to 176 °F |
| Module Width | 1 M |
| Depth (D) | 2.68" |
| Height (H) | 3.54" |
| Width (W) | 0.69" |
| Unit Weight | 0.3 lb |
| Complies With | ANSI®/IEEE® C62.41.2-2002 Cat A, Cat B, Cat C |
| Replacement Module | DSD1201S24M |
| Certifications | CE |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285647030 |
| EAN-13 | 8711893014174 |
